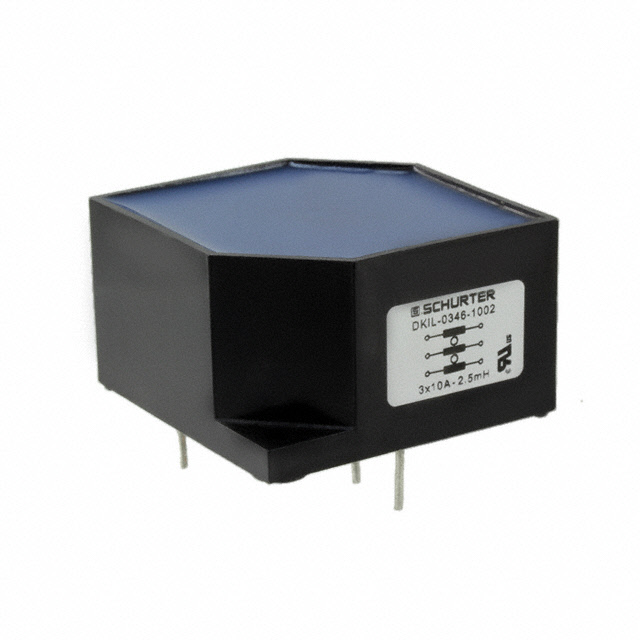

DKIL-0346-1002 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 10A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIL-0346-1002
- Description：CMC 10A 3LN TH
- Series：DKIL-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：15mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.969" L x 1.969" W (50.00mm x 50.00mm)
- Height (Max)：-
- Package / Case：Radial - 6 Leads
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIL-0346-1002
Common Mode Chokes Overview
The DKIL-0346-1002 is a three-line common mode choke manufactured by Schurter Inc. It features through-hole mounting and radial termination. The component supports a maximum DC current of 10A with a typical DC resistance of 15mOhms. It is rated for 760V DC and 540V AC. This inductor is designed for noise suppression in industrial applications.
Common Mode Chokes Feature Summary
- Provides effective common mode noise attenuation for three-phase power lines
- Engineered for high current handling up to 10A with low insertion loss
- Constructed for robust performance in demanding industrial environments
Common Mode Chokes Applications
- Three-phase power supply input filtering
- Industrial motor drive noise suppression
- Inverter output EMC compliance enhancement
Common Mode Chokes Procurement Notes
Verify the specific datasheet revision to confirm electrical tolerances and mechanical dimensions before integration. Ensure the supplier provides original manufacturer documentation to validate authenticity. Cross-reference the part number against official Schurter catalogs to avoid counterfeit components or obsolete stock variations.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring three-line common mode filtering for high-current applications. Compare its 10A rating and 15mOhms DCR against system requirements. Consider the through-hole package style for PCB assembly compatibility and thermal management needs in industrial enclosures.
Common Mode Chokes Part Context
This component belongs to Schurter's DKIL series of common mode chokes. These inductors are specialized for electromagnetic interference suppression in power electronics. The series offers various current ratings and line configurations to suit different industrial power distribution standards.
Common Mode Chokes Replacement Considerations
Consult Schurter technical support for verified cross-references. Ensure any substitute matches the 10A current rating, 15mOhms resistance, and three-line topology.
