DKIP-0229-1005

Common Mode Chokes Overview

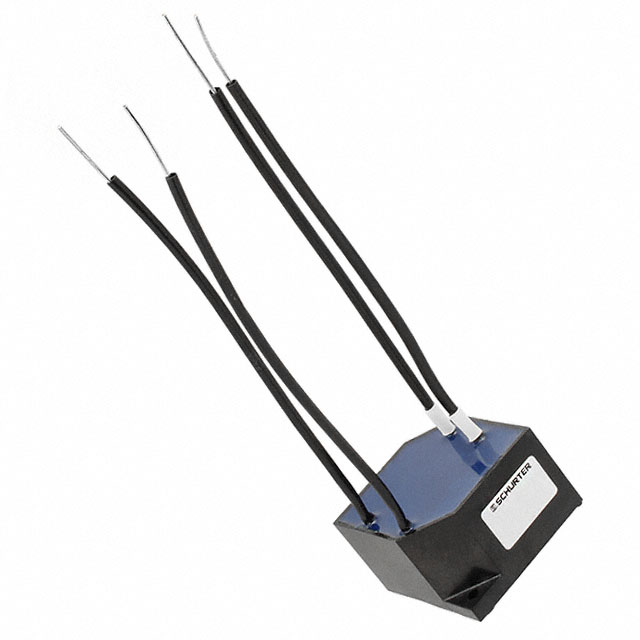

The DKIP-0229-1005 is a compensated high current choke manufactured by SCHURTER Inc., designed for single-phase applications. It functions as a common mode choke with two lines and supports a rated current of 10A. The component features a low DC resistance (DCR) of 18 mOhm and operates within a temperature range of -25°C to +100°C. It utilizes radial termination style and is intended for chassis mounting.

Common Mode Chokes Feature Summary

• Compensated high current design for single-phase circuits
• Common mode filtering capability with two-line configuration
• Low DC resistance for efficient power handling
• Chassis mount construction with radial terminations

Common Mode Chokes Applications

• Single-phase power supply input filtering
• Common mode noise suppression in electronic equipment
• High current circuit protection and conditioning

Common Mode Chokes Procurement Notes

Verify the exact datasheet version before integration, as manufacturing changes may occur. Confirm that the 10A rating and 18 mOhm DCR align with your specific thermal and electrical requirements. Ensure chassis mounting provisions are available in the final assembly design to accommodate the component's physical form factor.

Common Mode Chokes Selection Notes

Select this component when single-phase common mode attenuation is required at currents up to 10A. The low DCR minimizes voltage drop and heat generation compared to standard chokes. Verify that the operating temperature range of -25°C to +100°C meets the environmental conditions of the target application.

Common Mode Chokes Part Context

This part belongs to SCHURTER's line of compensated chokes, specifically engineered for high-current applications. It serves as a critical component for electromagnetic interference (EMI) suppression in power electronics, ensuring compliance with emission standards while maintaining signal integrity in single-phase systems.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult SCHURTER technical support for direct replacements or cross-references if this obsolete or discontinued item is required.
