DKIP-0231-1012

$34.30

Description：CMC 10A 2LN TH
Series：DKIP-1
Mfr：SCHURTER Inc.
Package：Bulk

SKU:af987fe2ac4e Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DKIP-0231-1012 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 10A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DKIP-0231-1012

Description：CMC 10A 2LN TH
Series：DKIP-1
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：10A
DC Resistance (DCR) (Max)：40mOhm
Voltage Rating - DC：760V
Voltage Rating - AC：540V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：UR
Features：-
Mounting Type：Through Hole
Size / Dimension：3.150" L x 3.150" W (80.00mm x 80.00mm)
Height (Max)：-
Package / Case：Nonstandard
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DKIP-0231-1012

DKIP-0231-1012

Common Mode Chokes Overview

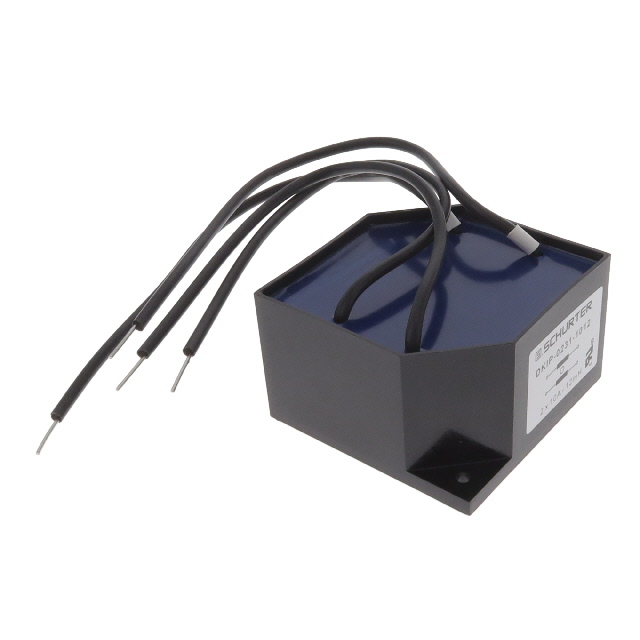

The DKIP-0231-1012 is a current compensated noise suppression choke manufactured by Schurter Inc. It belongs to the DKIP-1 series and is designed for chassis mounting with wire termination. This single-channel common mode choke features an inductance of 12 mH, a maximum DC current rating of 10 A, and a maximum DC resistance of 40 mOhms. The component operates within a temperature range of -25°C to +100°C and has a self-resonant frequency of 150 kHz.

Common Mode Chokes Feature Summary

Current compensated design for effective noise suppression
Chassis mount installation style with wire termination
Single channel configuration for one-phase applications

Common Mode Chokes Applications

Noise suppression in high-current circuits
Common mode interference filtering
Industrial power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the DKIP-0231-1012 to confirm mechanical dimensions and terminal specifications before integration. Ensure that the chassis mounting requirements align with the target enclosure design. Confirm that the wire termination type matches the existing harness or PCB layout constraints to avoid compatibility issues during assembly.

Common Mode Chokes Selection Notes

Select this component when a high-current rated common mode choke with current compensation is required. The 10 A rating and low DC resistance make it suitable for applications demanding minimal voltage drop under load. Verify that the operating environment stays within the specified -25°C to +100°C temperature range to ensure reliable performance and longevity of the magnetic core and insulation materials.

Common Mode Chokes Part Context

This part is part of Schurter's DKIP-1 series of compensated chokes. These components are engineered to provide efficient electromagnetic interference filtering while maintaining high current carrying capabilities. The series is characterized by its robust construction and suitability for demanding industrial environments where space and thermal management are critical factors.
