DKIP-0231-1505

Common Mode Chokes Overview

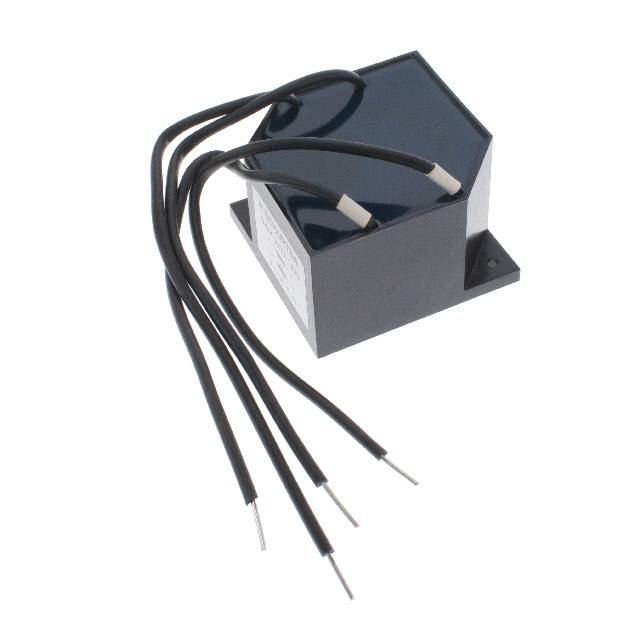

The DKIP-0231-1505 is a current compensated noise suppression choke manufactured by Schurter. It features a dual-channel configuration with an inductance of 5000 µH per channel and a maximum DC current rating of 15 A. The component utilizes wire termination for chassis mounting and operates within a temperature range of -25°C to +100°C. Designed for common mode noise reduction, it exhibits a self-resonant frequency of 150 kHz and a maximum DC resistance of 40 mΩ.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression through current compensated choke design
• Supports high current applications with a 15 A rated capacity per channel
• Features robust chassis mounting construction with wire terminations

Common Mode Chokes Applications

• Industrial power supply input filtering
• Medical equipment EMI mitigation
• Information technology hardware noise reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the DKIP-0231-1505 to confirm RoHS compliance status and exact mechanical dimensions prior to integration. Ensure that the chassis mounting requirements align with the physical specifications provided in the official Schurter documentation. Cross-reference the terminal type and inductance values against the system design constraints to guarantee compatibility.

Common Mode Chokes Selection Notes

Select this component when dual-channel common mode filtering is required for currents up to 15 A. The 5000 µH inductance offers significant attenuation for high-frequency interference. Consider the chassis mount style and wire leads for assembly methods. Evaluate the thermal performance within the specified operating temperature range to ensure reliability under load conditions.

Common Mode Chokes Part Context

This part belongs to the DKIP series of current compensated chokes from Schurter. These components are engineered for demanding environments requiring stable inductance under high current loads. The series is characterized by low DC resistance and high saturation capabilities, making them suitable for critical power integrity applications across various industrial sectors.

Common Mode Chokes Replacement Considerations

Consult Schurter technical support for verified substitute part numbers. Do not assume interchangeability with other DKIP variants without confirming electrical and mechanical parameter alignment.
