DKIP-0231-2003

Common Mode Chokes Overview

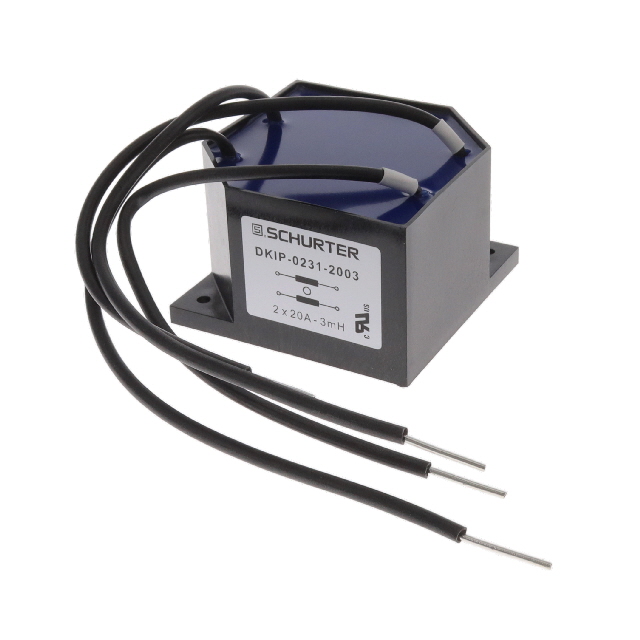

The Schurter DKIP-0231-2003 is a current compensated common mode choke from the DKIP-1 series, designed for noise suppression in single-phase applications. It features a 20 A maximum DC current rating and an inductance of 1.1 mH with a tolerance of -30% to +50%. The component operates within a temperature range of -25°C to +100°C and has a self-resonant frequency of 150 kHz. It utilizes wire termination and chassis mount installation.

Common Mode Chokes Feature Summary

• Current compensated design for effective noise suppression
• Single-channel configuration for single-phase circuits
• Robust chassis mount construction for secure integration

Common Mode Chokes Applications

• Industrial power supply filtering
• Electromagnetic interference suppression in machinery
• Noise reduction in single-phase electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific part number DKIP-0231-2003 against official Schurter documentation to ensure correct inductance and current ratings. Confirm that the -30% to +50% inductance tolerance aligns with your circuit requirements. Check for updated compliance certifications such as UL or IEC standards before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a high-current common mode choke with wide inductance tolerance is required for single-phase systems. Ensure the chassis mount style fits the mechanical constraints of the enclosure. Verify that the 20 A current rating exceeds the operational load to prevent saturation and maintain effective filtering performance under varying conditions.

Common Mode Chokes Part Context

This component belongs to the Schurter DKIP-1 series of current compensated chokes. These devices are engineered for robust noise suppression in demanding environments. The series offers various current ratings and inductance values to suit different power line filtering needs while maintaining compact dimensions for space-constrained installations.

Common Mode Chokes Replacement Considerations

Consult Schurter's official cross-reference guides for verified substitutes. Ensure any replacement maintains the 20 A current rating and compatible mounting style. Verify that alternative components meet the same electrical specifications and regulatory approvals.
