DKIP-0233-3005 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 30A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIP-0233-3005
- Description：CMC 30A 2LN TH
- Series：DKIP-1
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：30A
- DC Resistance (DCR) (Max)：12.5mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：4.724" L x 4.724" W (120.00mm x 120.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIP-0233-3005
Common Mode Chokes Overview

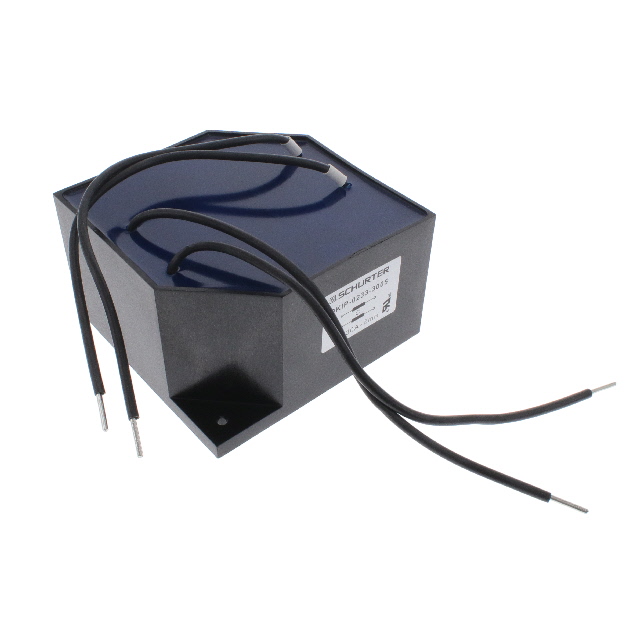

The SCHURTER DKIP-0233-3005 is a current compensated common mode choke designed for noise suppression. It features a through-hole chassis mount configuration with wire termination. The component supports a maximum DC current of 30A and has a maximum DC resistance of 12.5mOhms. It operates within a temperature range of -25°C to +100°C.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression via current compensation technology
- Utilizes wire termination for robust electrical connections
- Designed for chassis mounting in industrial applications
Common Mode Chokes Applications
- Industrial power supply filtering
- Noise suppression in high-current circuits
- Electromagnetic interference reduction in equipment
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number DKIP-0233-3005 against official Schurter documentation to confirm technical specifications. Ensure compatibility with existing chassis mounting requirements and wire termination methods. Check for any recent product change notifications or obsolescence notices directly from the manufacturer before procurement.
Common Mode Chokes Selection Notes
Select this component when high current handling up to 30A is required alongside effective common mode noise attenuation. The through-hole chassis mount style suits applications needing secure mechanical attachment. Verify that the operating temperature range of -25°C to +100°C meets environmental demands.
Common Mode Chokes Part Context
This component belongs to the DKIP series of current compensated chokes from Schurter. These devices are engineered for significant noise suppression in power lines. The DKIP-0233-3005 specifically addresses needs for higher current capacity compared to lower-rated variants in the same family.
Common Mode Chokes Replacement Considerations
Consult Schurter datasheets for direct substitutes within the DKIP series. Verify equivalent current ratings, inductance values, and physical dimensions for any alternative part numbers.
