DKIP-0233-4003

Common Mode Chokes Overview

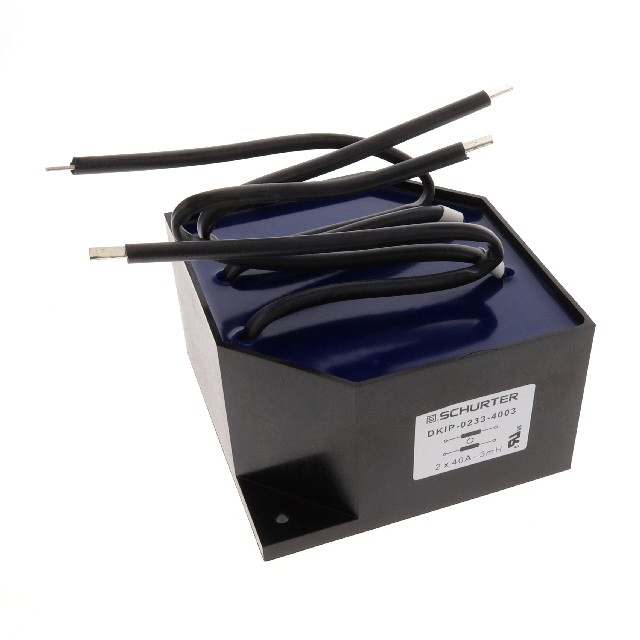

The DKIP-0233-4003 is a current compensated common mode choke from the Schurter DKIP-1 series. It features an inductance of 3 mH and supports a maximum DC current of 40 A. The component has a maximum DC resistance of 6 mohms and a self-resolving frequency of 300 kHz. Designed for chassis mounting with wire termination, it operates within a temperature range of -25°C to +100°C.

Common Mode Chokes Feature Summary

• Provides noise suppression through current compensated common mode filtering
• Supports high direct current loads up to 40 amperes
• Utilizes wire termination for secure electrical connections

Common Mode Chokes Applications

• Current compensated noise suppression systems
• Chassis mounted electronic filtering applications
• Industrial power supply interference mitigation

Common Mode Chokes Procurement Notes

Verify the manufacturer part number DKIP-0233-4003 against official Schurter documentation to ensure authenticity. Confirm that the specific variant matches the required 3 mH inductance and 40 A current rating specifications. Check for any recent product change notices or manufacturing site reassignments that may affect component sourcing or lead times.

Common Mode Chokes Selection Notes

Select this component when a high-current common mode choke with 3 mH inductance is required. Ensure the application environment stays within the -25°C to +100°C operating temperature range. Verify that chassis mounting and wire termination methods align with the system design constraints and mechanical layout requirements.

Common Mode Chokes Part Context

This component belongs to the DKIP-1 series of current compensated chokes manufactured by Schurter Inc. These devices are engineered for robust noise suppression in demanding environments. The series emphasizes high current handling capabilities combined with effective electromagnetic interference reduction for industrial and commercial power electronics.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers include DKIP-0329-1002 and DKIP-0329-1003 as indicated in internal company facilities production workload reassignment notices.
