DKIP-0329-1002

Common Mode Chokes Overview

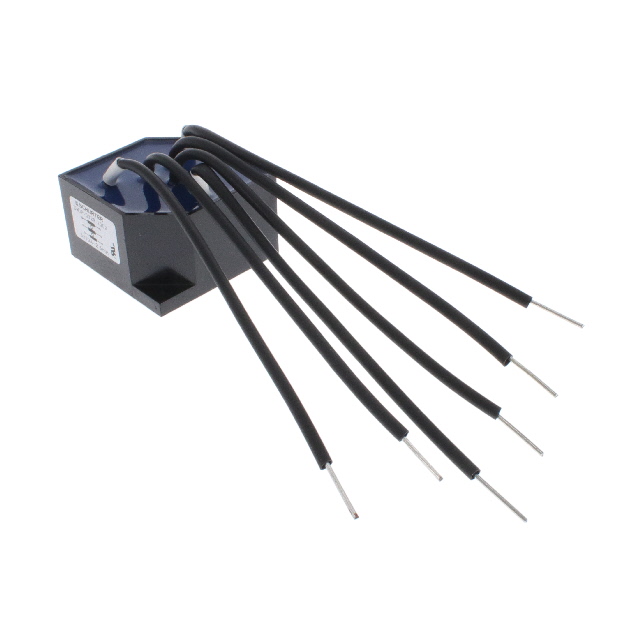

The DKIP-0329-1002 is a three-line common mode choke manufactured by Schurter Inc. Designed for chassis mounting, this compensated high current choke supports a current rating of 10A. It features a DC resistance (DCR) of 15 milliohms. The component is classified as a CMC with three lines intended for industrial applications requiring robust electromagnetic interference suppression.

Common Mode Chokes Feature Summary

• Three-line configuration for balanced common mode noise reduction
• Compensated design optimized for high current stability
• Chassis mount construction for secure mechanical installation

Common Mode Chokes Applications

• Industrial power supply input filtering
• Three-phase equipment EMI suppression
• High current circuit protection systems

Common Mode Chokes Procurement Notes

Verify the specific datasheet version before procurement to ensure compatibility with system requirements. Confirm that the chassis mount style and terminal configurations match the enclosure design. Check for any recent product change notices or obsolescence alerts from Schurter Inc. to avoid supply chain disruptions during production.

Common Mode Chokes Selection Notes

Select this component when a three-line common mode choke is required for high current applications up to 10A. Ensure the 15 milliohm DCR meets the voltage drop constraints of the circuit. Verify that the physical dimensions allow for adequate chassis mounting space and thermal management in the final assembly.

Common Mode Chokes Part Context

This component belongs to Schurter's range of compensated high current chokes. It is engineered for demanding environments where reliable EMI filtering is critical. The three-line design distinguishes it from single-phase alternatives, making it suitable for complex industrial power distribution networks.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative Schurter models based on identical current ratings and three-line specifications if direct replacement is necessary.
