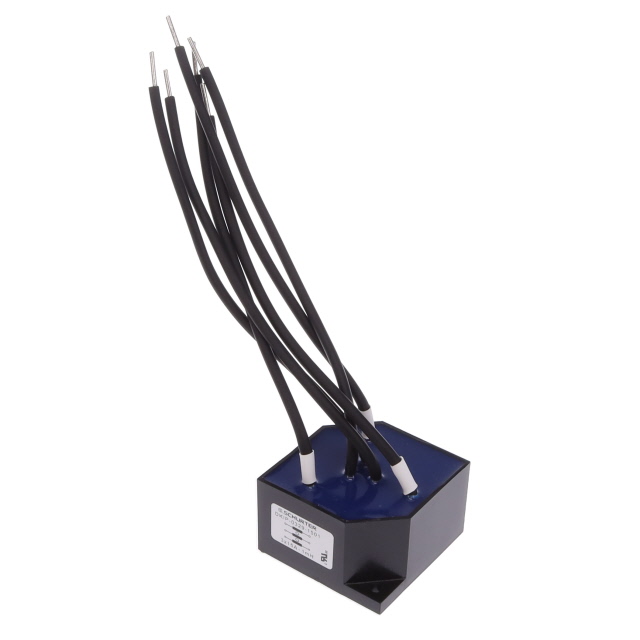

DKIP-0329-1501 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 15A 3LN CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIP-0329-1501
- Description：CMC 15A 3LN CHASSIS MOUNT
- Series：DKIP-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：15A
- DC Resistance (DCR) (Max)：7mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Chassis Mount
- Size / Dimension：1.890" L x 1.890" W (48.00mm x 48.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIP-0329-1501
Common Mode Chokes Overview
The DKIP-0329-1501 is a 3-line common mode choke manufactured by SCHURTER Inc., designed for chassis mounting applications. It features a rated current of 15A and a DC resistance (DCR) of 7mOhm. This component functions as a compensating choke within electromagnetic interference filtering systems, providing noise suppression for three-phase power lines.
Common Mode Chokes Feature Summary
- Provides common mode noise attenuation for three-phase electrical circuits
- Engineered for direct chassis mounting to ensure mechanical stability
- Functions as a compensating choke to maintain signal integrity in filtered power paths
Common Mode Chokes Applications
- Three-phase power supply input filtering
- Industrial equipment electromagnetic compatibility enhancement
- Chassis-mounted noise suppression systems
Common Mode Chokes Procurement Notes
Verify the specific part number DKIP-0329-1501 against official SCHURTER documentation to confirm the 15A rating and 7mOhm DCR specifications. Ensure the procurement source provides valid manufacturer traceability. Confirm that the chassis mount configuration matches the installation requirements. Check for any recent product change notifications or obsolescence notices directly from the manufacturer before finalizing orders.
Common Mode Chokes Selection Notes
Select this component when a 15A rated common mode choke is required for three-phase applications. The 7mOhm DC resistance indicates low power loss characteristics suitable for efficient power transmission. The chassis mount style dictates the physical integration method, requiring appropriate panel cutouts or mounting hardware. Verify that the environmental conditions and thermal management capabilities align with the system design constraints.
Common Mode Chokes Part Context
This component belongs to the DKIP series of common mode chokes produced by SCHURTER Inc. These components are specialized for industrial and commercial power electronics, focusing on robust noise reduction in high-current environments. The series typically offers various current ratings and mounting options to suit different enclosure designs and regulatory compliance needs.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult SCHURTER technical support for approved alternatives if this specific model is unavailable.
