DKIP-0331-1005

Common Mode Chokes Overview

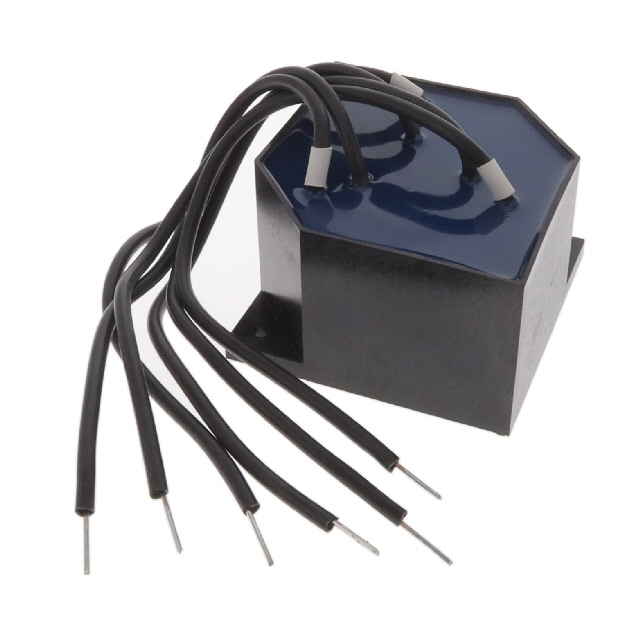

The Schurter DKIP-0331-1005 is a three-phase compensated high-current choke designed for noise suppression applications. It features a through-hole mounting style and supports a maximum DC current of 10A. The component exhibits a maximum DC resistance of 32 milliohms and an inductance value associated with the DKIP-3 series. It operates within a temperature range from -25°C to +100°C.

Common Mode Chokes Feature Summary

• Three-phase configuration for balanced load handling
• Compensated design for high-current noise suppression
• Through-hole termination for secure PCB integration

Common Mode Chokes Applications

• Industrial power supply filtering
• EMC compliance in three-phase systems
• High-current circuit noise reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the DKIP-0331-1005 to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing thermal management strategies given the 100°C maximum operating temperature. Cross-reference the 32mOhm DCR specification against system loss requirements before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when three-phase compensation is required for currents up to 10A. Compare the 32mOhm resistance against alternative chokes to evaluate voltage drop impacts. Confirm that the through-hole package fits the target PCB layout constraints and that the -25°C to +100°C range meets environmental conditions.

Common Mode Chokes Part Context

This part belongs to the Schurter DKIP-3 series of compensated high-current chokes. These components are engineered for EMC products and provide common mode noise suppression. The series is characterized by its ability to handle significant DC currents while maintaining low impedance characteristics for effective filtering in industrial environments.

Common Mode Chokes Replacement Considerations

Direct substitutes may include other Schurter DKIP-3 series variants with similar current ratings, such as the DKIP-0233-4003 for higher current needs or DKIP-0333-3602 for different inductance profiles. Verify phase configuration and mounting style compatibility before substitution.
