DKIP-0331-1502

Common Mode Chokes Overview

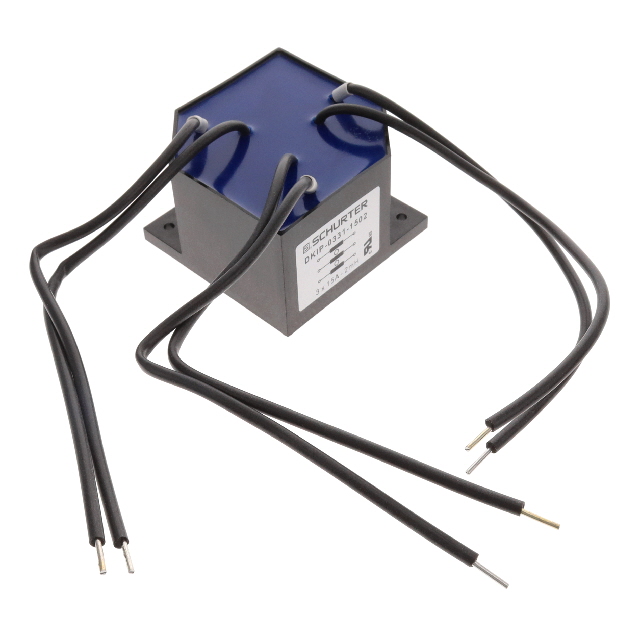

The DKIP-0331-1502 is a three-line common mode choke manufactured by SCHURTER Inc., designed for through-hole mounting. It features a current rating of 15A and an inductance of 2x2mH with a maximum DC resistance of 13mOhms. The component utilizes wire termination and measures 80x80x50.8mm.

Common Mode Chokes Feature Summary

• Three-phase common mode noise suppression
• Through-hole construction for secure board attachment
• High current handling capability

Common Mode Chokes Applications

• Industrial power supply filtering
• Three-phase motor drive protection
• Electromagnetic interference reduction in heavy machinery

Common Mode Chokes Procurement Notes

Verify the exact part number against official SCHURTER documentation to ensure compatibility with three-phase systems. Confirm mechanical dimensions and lead configuration match the target PCB layout. Check for recent production changes or obsolescence notices directly from the manufacturer before finalizing procurement plans.

Common Mode Chokes Selection Notes

Select this component when three-phase common mode noise attenuation is required at high current levels. Ensure the application environment supports through-hole assembly techniques. Verify that the physical footprint accommodates the specified chassis or panel mount dimensions if applicable.

Common Mode Chokes Part Context

This component belongs to SCHURTER's DKIP series of common mode chokes, which are engineered for robust electromagnetic interference suppression in industrial and commercial power applications. The series emphasizes durability and high current capacity for demanding electrical environments.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult SCHURTER technical support for validated alternatives.
