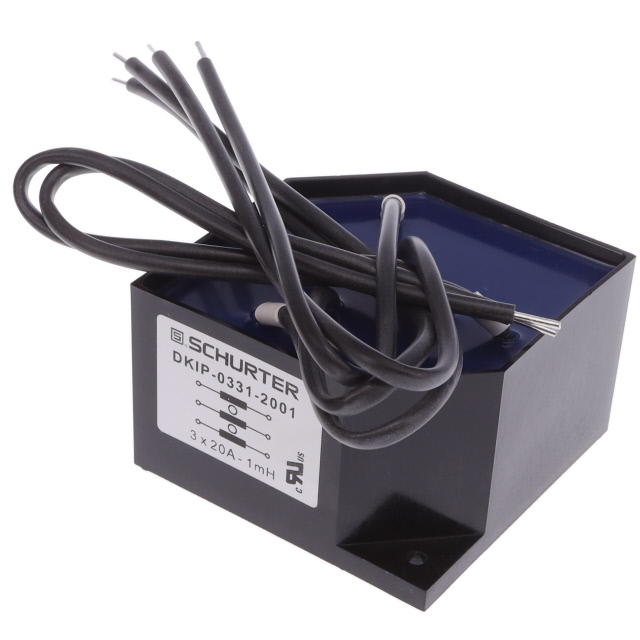

DKIP-0331-2001 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 20A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIP-0331-2001
- Description：CMC 20A 3LN TH
- Series：DKIP-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：20A
- DC Resistance (DCR) (Max)：8mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：4.724" L x 4.724" W (120.00mm x 120.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIP-0331-2001
Common Mode Chokes Overview
The DKIP-0331-2001 is a compensated high-current common mode choke designed for three-phase applications. It features a through-hole mounting configuration with a maximum current rating of 20 A and a DC resistance (DCR) of 8 mOhm. The component supports voltage ratings up to 760 V DC and 540 V AC. With an inductance of 1 mH, it belongs to the DKIP-3 series and is engineered for robust electromagnetic interference suppression in industrial power systems.
Common Mode Chokes Feature Summary
- Compensated design for high-current three-phase environments
- Through-hole construction for secure panel or board integration
- Low DC resistance to minimize power loss during operation
Common Mode Chokes Applications
- Three-phase power supply filtering
- Industrial motor drive systems
- Electromagnetic interference suppression in heavy machinery
Common Mode Chokes Procurement Notes
Verify the specific datasheet version for derating curves and thermal performance limits. Confirm that the through-hole footprint matches your PCB layout requirements. Ensure the operating temperature range aligns with your system's environmental conditions before finalizing procurement.
Common Mode Chokes Selection Notes
Select this component when a 20 A current capacity and 1 mH inductance are required for three-phase lines. The low DCR specification makes it suitable for applications where efficiency is critical. Compare against other DKIP series variants if different inductance values or current ratings are needed.
Common Mode Chokes Part Context
This part belongs to Schurter’s DKIP-3 series of compensated chokes. These components are specifically engineered for high-current applications where standard chokes may saturate. The series provides reliable noise attenuation for sensitive electronic loads in demanding industrial settings.
Common Mode Chokes Replacement Considerations
Check for direct substitutes within the DKIP series with adjusted inductance or current ratings. Verify mechanical compatibility for through-hole mounting. Ensure electrical parameters such as saturation current and impedance characteristics match the original design requirements.
