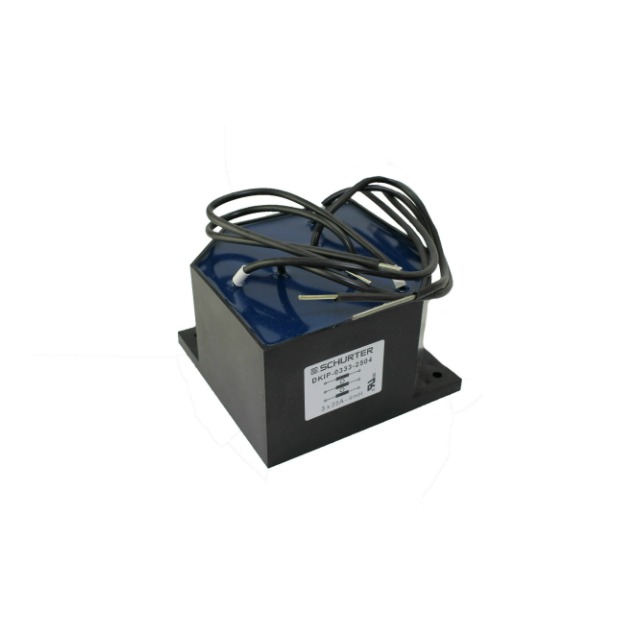

DKIP-0333-2504 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 25A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIP-0333-2504
- Description：CMC 25A 3LN TH
- Series：DKIP-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：25A
- DC Resistance (DCR) (Max)：12mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：4.724" L x 4.724" W (120.00mm x 120.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIP-0333-2504
Common Mode Chokes Overview
The DKIP-0333-2504 is a three-phase current compensated common mode choke manufactured by Schurter Inc. It features a maximum DC current rating of 25 A and a maximum DC resistance of 12 mOhms. The component operates within a temperature range of -25°C to +100°C. Voltage ratings include 760 V DC and 540 V AC. Designed for chassis mounting with wire termination, it serves as a noise suppression choke in power electronics applications.
Common Mode Chokes Feature Summary
- Provides current compensation for three-phase systems to reduce common mode noise
- Utilizes a robust chassis mount design suitable for high-current industrial environments
- Engineered for efficient electromagnetic interference suppression in power circuits
Common Mode Chokes Applications
- Three-phase motor drive systems
- Industrial power supply units
- Uninterruptible power supply (UPS) systems
Common Mode Chokes Procurement Notes
Verify the specific part number DKIP-0333-2504 against official Schurter documentation to ensure correct electrical specifications. Confirm that the 25A current rating and 12mOhm DCR match your system requirements. Check datasheet details for mechanical dimensions and terminal types before procurement to avoid integration errors.
Common Mode Chokes Selection Notes
Select this component when designing three-phase filters requiring high current handling capabilities up to 25A. Ensure the application voltage does not exceed 760V DC or 540V AC. Consider the chassis mount style and wire termination method during PCB or panel layout planning to accommodate the physical size and connection requirements of the choke.
Common Mode Chokes Part Context
This component belongs to the DKIP series of compensated chokes from Schurter Inc., designed for high-current noise suppression. It is distinct from single-phase variants and offers specialized filtering for three-phase power lines. The series is recognized for its ability to handle significant DC currents while maintaining effective common mode attenuation characteristics.
Common Mode Chokes Replacement Considerations
Consult Schurter's official cross-reference guides for verified substitutes. Ensure any replacement maintains the 25A current rating, three-phase configuration, and compatible voltage ratings. Mechanical compatibility must be verified if space constraints are critical.
