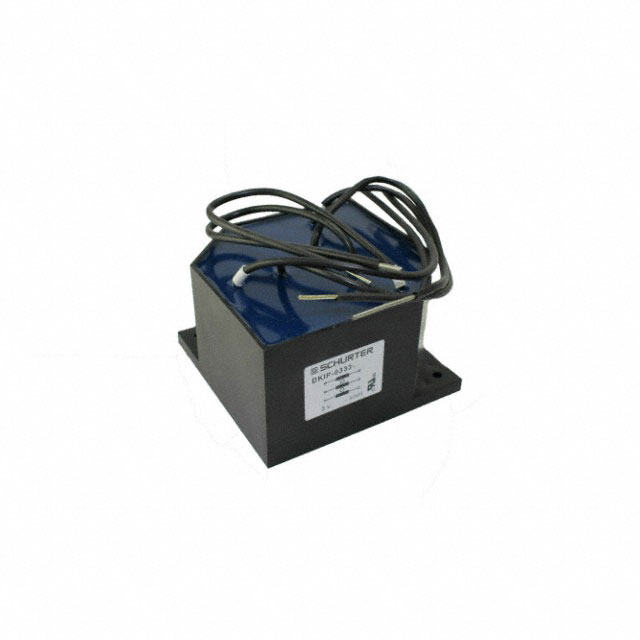

DKIP-0333-3602 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 36A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIP-0333-3602
- Description：CMC 36A 3LN TH
- Series：DKIP-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：36A
- DC Resistance (DCR) (Max)：7.6mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：4.724" L x 4.724" W (120.00mm x 120.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIP-0333-3602
Common Mode Chokes Overview
The SCHURTER DKIP-0333-3602 is a current compensated common mode choke from the DKIP-3 series, designed for three-phase applications. It features a 2 mH inductance and supports a maximum DC current of 36 A with a maximum DC resistance of 7.6 mohms. The component operates within a temperature range of -25°C to +100°C and has a self-resonant frequency of 250 kHz. It utilizes wire termination and chassis mounting.
Common Mode Chokes Feature Summary
- Current compensated design for noise suppression
- Three-phase configuration
- Chassis mount installation style
Common Mode Chokes Applications
- Industrial power supply filtering
- Motor drive noise reduction
- Three-phase equipment EMC compliance
Common Mode Chokes Procurement Notes
Verify the specific part number DKIP-0333-3602 against official Schurter documentation to confirm electrical parameters such as 2 mH inductance and 36 A current rating. Ensure compatibility with chassis mounting requirements and wire termination types before procurement. Cross-reference datasheets for thermal performance limits.
Common Mode Chokes Selection Notes
Select this component for three-phase systems requiring high current handling up to 36 A. The 2 mH inductance provides effective common mode noise attenuation. Verify that the operating environment stays within the -25°C to +100°C range. Consider the 7.6 mohms DCR for power loss calculations in the circuit design.
Common Mode Chokes Part Context
This component belongs to the DKIP-3 series of compensated chokes by Schurter. These devices are engineered for robust noise suppression in industrial environments. The series offers various current ratings and inductance values to suit different power electronics applications, ensuring reliable operation under high load conditions.
Common Mode Chokes Replacement Considerations
Consult Schurter technical support for verified substitutes. Compare inductance, current rating, and physical dimensions when evaluating alternatives. Ensure any replacement maintains the same three-phase configuration and mounting style.
