DKIP-0333-5001

Common Mode Chokes Overview

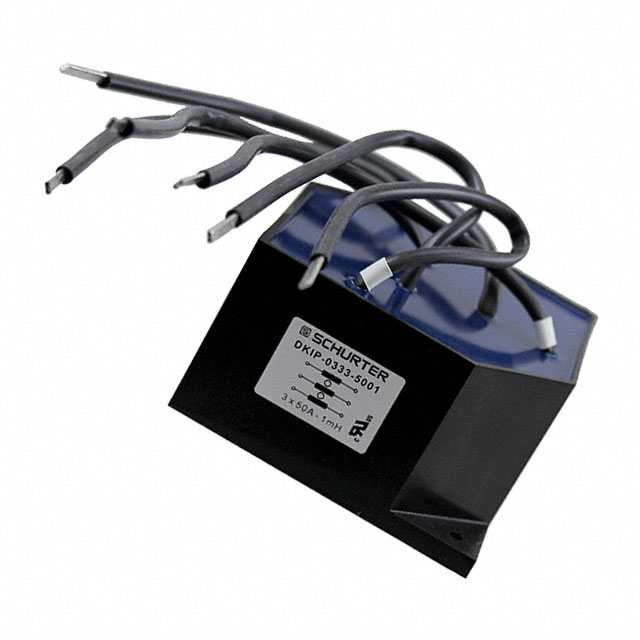

The DKIP-0333-5001 is a three-line common mode choke from the DKIP-3 series, manufactured by Schurter Inc. It features through-hole radial lead termination and is designed for current compensated noise suppression applications. The component provides an inductance of 1 mH with a maximum DC current rating of 50 A. Its direct current resistance (DCR) is specified at 4 milliohms. This device is engineered to handle high current loads while effectively suppressing electromagnetic interference in multi-phase power systems.

Common Mode Chokes Feature Summary

• Three-line configuration for multi-phase power filtering
• High current handling capability up to 50 amperes
• Current compensated design for noise suppression
• Through-hole radial lead mounting style

Common Mode Chokes Applications

• Industrial power supply input filtering
• Motor drive noise suppression
• Three-phase AC power line conditioning

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the DKIP-0333-5001 to confirm mechanical dimensions and thermal derating curves. Ensure the application environment supports the operating temperature range defined by Schurter. Cross-reference the 4mOhm DCR specification against system loss requirements. Confirm that the 50A continuous current rating aligns with peak load demands without exceeding thermal limits.

Common Mode Chokes Selection Notes

Select this component when three-phase noise attenuation is required alongside high current capacity. The 1mH inductance value offers a balance between impedance and saturation characteristics for 50A applications. Compare against single-phase alternatives if system topology differs. Consider the radial lead form factor for PCB or chassis wiring integration needs within industrial enclosures.

Common Mode Chokes Part Context

This part belongs to the DKIP series of current compensated chokes, which are specialized for reducing common mode noise in power electronics. Unlike standard inductors, these components utilize magnetic compensation to maintain low core losses at high currents. The DKIP-3 sub-series specifically addresses three-phase configurations, distinguishing it from single or dual-phase variants in Schurter's portfolio.

Common Mode Chokes Replacement Considerations

Direct substitutes include other Schurter DKIP-3 series models with matching 50A ratings and 1mH inductance. Verify pinout compatibility and physical footprint before swapping. Alternative manufacturers may offer similar specifications but require validation of magnetic material properties and saturation behavior under identical load conditions.
