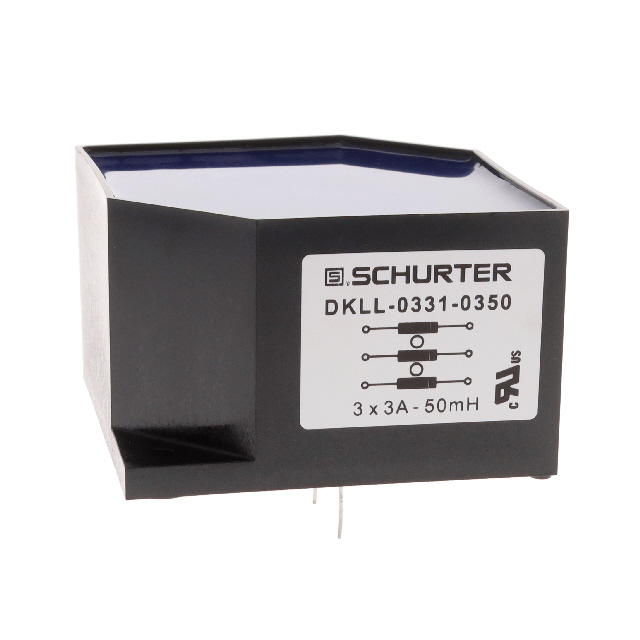

DKLL-0331-0350 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 3A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKLL-0331-0350
- Description：CMC 3A 3LN TH
- Series：DKLL-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：260mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：3.150" L x 3.150" W (80.00mm x 80.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKLL-0331-0350
Common Mode Chokes Overview
The DKLL-0331-0350 is a compensated high inductance choke designed for three-phase applications. It features through-hole mounting and supports a maximum DC current of 3A with a DC resistance of 260mOhms. This component functions as a common mode choke to suppress electromagnetic interference in industrial power systems.
Common Mode Chokes Feature Summary
- Compensated high inductance design for three-phase circuits
- Through-hole termination for secure PCB integration
- Common mode noise suppression capability
Common Mode Chokes Applications
- Three-phase power supply filtering
- Industrial motor drive protection
- Electromagnetic interference suppression in AC systems
Common Mode Chokes Procurement Notes
Verify the exact part number against official Schurter documentation, as similar model prefixes like DKLP or DKLL may indicate different series specifications. Confirm that the through-hole package and 3A current rating align with your circuit requirements before finalizing procurement.
Common Mode Chokes Selection Notes
Select this component when three-phase common mode filtering is required with through-hole assembly constraints. Ensure the 260mOhm DC resistance and 3A current handling capacity meet the specific load and thermal management needs of the target application environment.
Common Mode Chokes Part Context
This component belongs to the DKLL series of compensated chokes manufactured by Schurter Inc. It is specifically engineered for three-phase configurations, distinguishing it from single-phase or two-channel variants within the broader DKLP product family.
