DKLL-0331-0520

Common Mode Chokes Overview

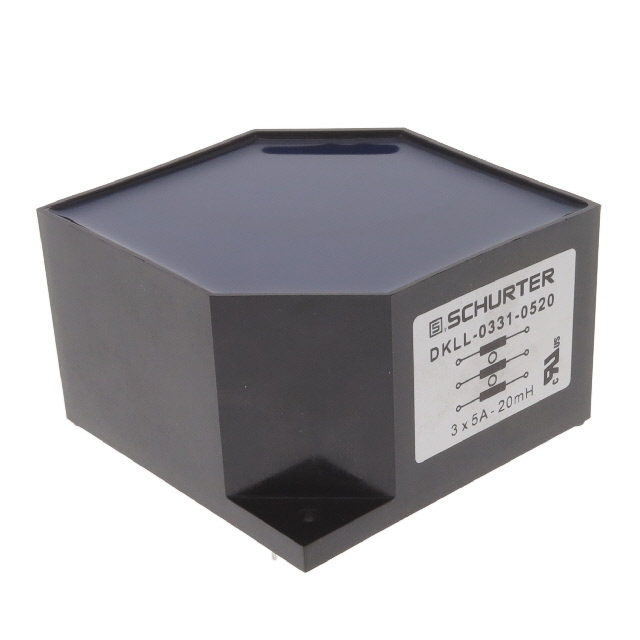

The SCHURTER DKLL-0331-0520 is a compensated high inductance choke designed for three-phase applications. It features through-hole mounting and supports a maximum DC current of 5A with a DC resistance of 100mOhm. This component functions as a common mode choke to suppress electromagnetic interference in industrial power systems.

Common Mode Chokes Feature Summary

• Provides high inductance compensation for three-phase circuits
• Designed for effective common mode noise suppression
• Utilizes through-hole termination for secure PCB integration

Common Mode Chokes Applications

• Three-phase power supply filtering
• Industrial motor drive EMI reduction
• Common mode noise suppression in AC/DC converters

Common Mode Chokes Procurement Notes

Verify the specific datasheet version before procurement, as component specifications may be subject to change. Confirm that the through-hole package dimensions match your PCB footprint requirements. Ensure the 5A current rating aligns with your system's operational load to prevent saturation or overheating during continuous use.

Common Mode Chokes Selection Notes

Select this component when three-phase common mode filtering is required with a 5A current capacity. The through-hole design offers mechanical stability compared to surface mount alternatives. Verify that the 100mOhm DC resistance meets your efficiency constraints within the target circuit topology.

Common Mode Chokes Part Context

This part belongs to Schurter's DKLL series of compensated chokes. These components are engineered for robust performance in demanding industrial environments. The series focuses on providing reliable noise suppression for multi-phase electrical systems while maintaining low insertion loss.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official Schurter resources for qualified replacements if this specific model is unavailable.
