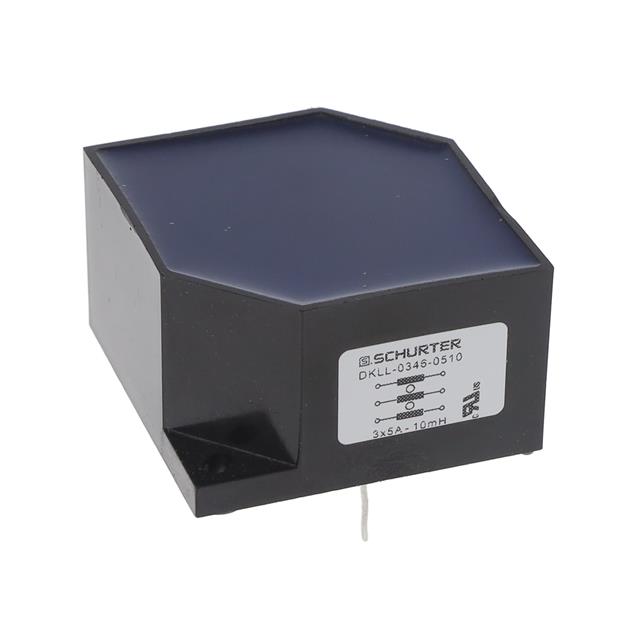

DKLL-0346-0510 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 5A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKLL-0346-0510
- Description：CMC 5A 3LN TH
- Series：DKLL-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：48mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.969" L x 1.969" W (50.00mm x 50.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKLL-0346-0510
Common Mode Chokes Overview
The DKLL-0346-0510 is a current compensated common mode choke manufactured by Schurter. It features a radial PCB mount configuration with one channel. Key electrical parameters include an inductance of 10 mH, a maximum DC current rating of 5 A, and a maximum DC resistance of 48 mOhms. The component operates within a temperature range of -25 C to +100 C and has a self-resonant frequency of 150 kHz.
Common Mode Chokes Feature Summary
- Current compensated design for noise suppression
- Radial through-hole PCB mounting style
- Single channel configuration
Common Mode Chokes Applications
- Three-phase power line filtering
- Common mode noise attenuation in industrial equipment
- Electromagnetic interference suppression in power supplies
Common Mode Chokes Procurement Notes
Verify component status as the DKLL-0346-0510 is listed as obsolete or discontinued by the manufacturer. Confirm availability through secondary market distributors or authorized surplus suppliers. Ensure that any sourced units match the original datasheet specifications regarding inductance, current rating, and physical dimensions before integration into production designs.
Common Mode Chokes Selection Notes
Select this component for applications requiring high inductance in a compensated choke format. The 5 A current rating and 10 mH inductance suit specific power filtering needs. Verify that the radial leaded package fits the target PCB layout constraints. Consider the operating temperature range limits when designing for extreme environmental conditions.
Common Mode Chokes Part Context
This part belongs to the DKLL-3 series of current compensated chokes from Schurter. These components are designed for three-phase applications, offering high inductance values to suppress common mode noise effectively. The series utilizes a specific core material and winding technique to achieve the specified compensation characteristics.
Common Mode Chokes Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, engineers must evaluate alternative components from other manufacturers or newer Schurter series that meet the required 10 mH inductance and 5 A current specifications.
