DKLP-0229-0614

Common Mode Chokes Overview

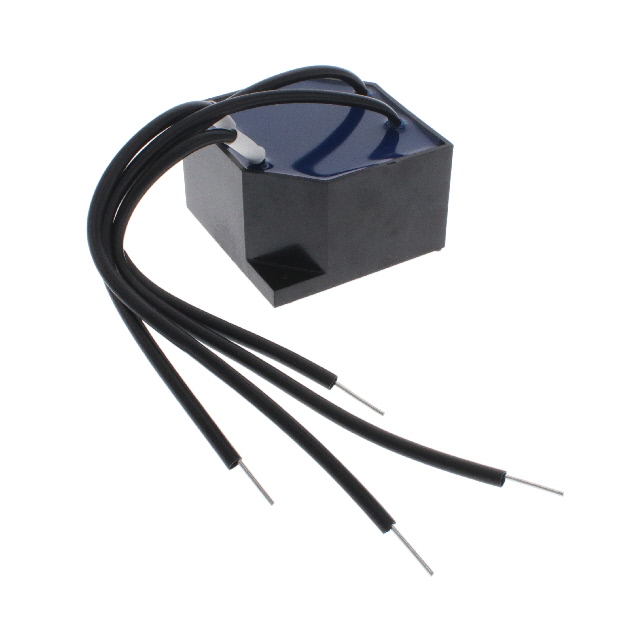

The SCHURTER DKLP-0229-0614 is a compensated high inductance choke designed for single-phase applications. It features a through-hole mounting style and supports a current rating of 6A. The component exhibits a DC resistance of 46mOhm and an inductance value of 14 mH within a single channel configuration.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for single-phase circuits
• Utilizes a compensated high inductance design for effective filtering
• Supports through-hole installation for robust PCB integration

Common Mode Chokes Applications

• Single-phase power line filtering
• Common mode interference suppression in electronic equipment
• Power supply input stages requiring noise reduction

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number DKLP-0229-0614 against official Schurter documentation to ensure compatibility with single-phase requirements. Confirm that the 6A current rating and 14 mH inductance align with your circuit design specifications before procurement.

Common Mode Chokes Selection Notes

Select this component when single-phase common mode noise suppression is required at 6A. Ensure the through-hole package fits the board layout and verify that the 46mOhm DC resistance meets efficiency targets. Compare electrical parameters against alternative chokes if space or performance constraints exist.

Common Mode Chokes Part Context

This component belongs to the DKLP series of compensated chokes from SCHURTER Inc. These components are engineered for electromagnetic interference mitigation in AC/DC power inputs, offering reliable performance in industrial and consumer electronics environments.

Common Mode Chokes Replacement Considerations

Consult official Schurter substitution guides for verified alternatives. Ensure any replacement maintains the 6A rating, 14 mH inductance, and single-phase topology without altering the through-hole footprint or compensation characteristics.
