DKLP-0233-2012

Common Mode Chokes Overview

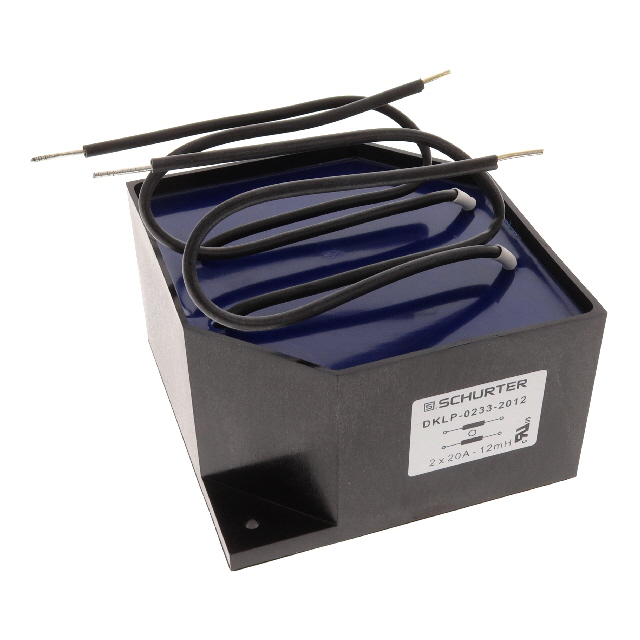

The DKLP-0233-2012 is a compensated high inductance choke manufactured by SCHURTER Inc. It is designed as a common mode filter for single-phase applications. The component features through-hole mounting and supports a maximum DC current of 20A. Key electrical specifications include an inductance of less than 60mH, a maximum DC resistance of 19 milliohms, and a self-resonant frequency of 300 kHz. It operates within a temperature range of -25°C to +100°C.

Common Mode Chokes Feature Summary

• Compensated high inductance design for effective noise suppression
• Single-phase configuration suitable for common mode filtering
• Through-hole termination method for secure board integration

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment noise reduction
• Consumer electronics EMI mitigation

Common Mode Chokes Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the through-hole package style matches your PCB layout requirements. Ensure the 20A current rating and <60mH inductance meet your circuit's performance needs. Check for RoHS compliance status if required by your manufacturing standards. Cross-reference the Mouser number 693-dklp-0233-2012 for accurate distributor identification.

Common Mode Chokes Selection Notes

Select this component when a single-phase common mode choke with high inductance is required. The 20A current capacity makes it suitable for moderate power applications. The low DC resistance minimizes power loss. Verify that the physical dimensions fit the available chassis or panel space. Consider the operating temperature range for environmental compatibility.

Common Mode Chokes Part Context

This part belongs to the DKLP series of compensated chokes from SCHURTER. These components are engineered for electromagnetic interference suppression in AC line applications. The series offers various current ratings and inductance values to suit different filtering requirements. The DKLP-0233-2012 specifically targets single-phase circuits requiring robust common mode noise attenuation.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for equivalent recommendations based on specific electrical and mechanical constraints.
