DKLP-0329-0804

$20.63

Description：CMC 8A 3LN TH
Series：DKLP-3
Mfr：SCHURTER Inc.
Package：Bulk

SKU:262bbd444eba Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DKLP-0329-0804 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 8A 3LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DKLP-0329-0804

Description：CMC 8A 3LN TH
Series：DKLP-3
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：3
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：22mOhm
Voltage Rating - DC：760V
Voltage Rating - AC：540V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：UR
Features：-
Mounting Type：Through Hole
Size / Dimension：1.890" L x 1.890" W (48.00mm x 48.00mm)
Height (Max)：-
Package / Case：Nonstandard
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DKLP-0329-0804

DKLP-0329-0804

Common Mode Chokes Overview

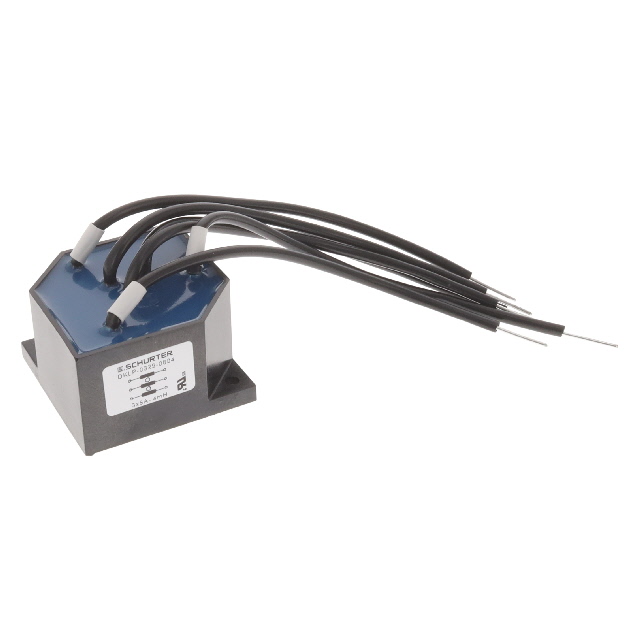

The Schurter DKLP-0329-0804 is a three-phase compensated high inductance choke designed for common mode noise suppression. It features a current-compensated architecture suitable for three-line applications. The component supports through-hole mounting with flexible wire connections and includes a flange for secure installation. Rated for 8A continuous current, it exhibits a DC resistance of 22mOhm and an inductance value of less than 60mH.

Common Mode Chokes Feature Summary

Three-phase current compensation design
Flexible wire termination style
Integrated mounting flange

Common Mode Chokes Applications

Three-phase power line filtering
Common mode noise suppression in industrial equipment
Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific datasheet revision to confirm exact inductance tolerances and thermal derating curves. Ensure the flexible wire gauge matches the system's current carrying requirements. Confirm that the mounting flange dimensions are compatible with the intended chassis or PCB layout constraints before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when three-phase common mode attenuation is required without significant differential mode interference. The flexible wire option simplifies assembly in tight spaces compared to rigid leads. Verify that the 8A rating aligns with the maximum load current including startup surges to prevent premature saturation or overheating.

Common Mode Chokes Part Context

This part belongs to the DKLP series of compensated chokes from Schurter. These components are engineered for high efficiency in power electronics by minimizing core saturation under unbalanced load conditions. The series is widely used in applications demanding robust EMI performance in three-phase environments.
