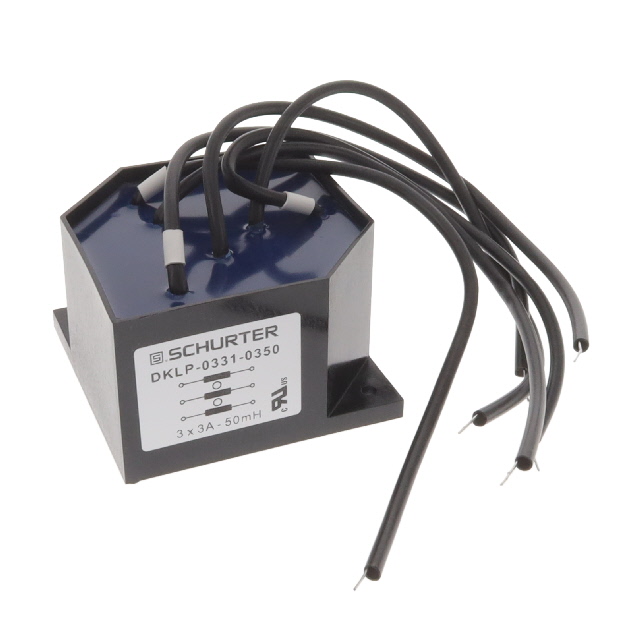

DKLP-0331-0350 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 3A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKLP-0331-0350
- Description：CMC 3A 3LN TH
- Series：DKLP-3
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：260mOhm
- Voltage Rating - DC：760V
- Voltage Rating - AC：540V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：3.150" L x 3.150" W (80.00mm x 80.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKLP-0331-0350
Common Mode Chokes Overview
The DKLP-0331-0350 is a compensated high inductance choke manufactured by SCHURTER Inc. It is designed as a 1-phase common mode filter with through-hole mounting. The component supports a current rating of 3A and features a DC resistance (DCR) of 260mOhm. Physical dimensions are specified as 80.00mm x 80.00mm, utilizing a nonstandard package case.
Common Mode Chokes Feature Summary
- Compensated high inductance design for effective noise suppression
- Single-phase common mode filtering capability
- Through-hole mounting configuration for secure installation
Common Mode Chokes Applications
- Industrial power supply noise reduction
- Electromagnetic interference (EMI) filtering in electronic equipment
- Power line signal conditioning
Common Mode Chokes Procurement Notes
Verify the specific datasheet version when sourcing, as component specifications may evolve. Confirm that the through-hole footprint matches the target PCB layout prior to integration. Ensure the 3A current rating and 260mOhm DCR align with system requirements. Check for any recent product change notifications or lifecycle status updates from the manufacturer.
Common Mode Chokes Selection Notes
Select this component for applications requiring single-phase common mode attenuation with moderate current handling. The 80mm square form factor dictates panel or board space allocation. Verify compatibility with operating temperatures and environmental conditions defined in the official documentation before finalizing the design.
Common Mode Chokes Part Context
This part belongs to the DKLP series of compensated chokes from SCHURTER Inc. These components are engineered for power electronics to mitigate conducted emissions. The DKLP-0331-0350 specifically addresses 1-phase applications, distinguishing it from multi-phase variants within the broader family.
Common Mode Chokes Replacement Considerations
Consult the official SCHURter replacement guide for direct equivalents. Cross-reference electrical parameters such as inductance values and saturation currents to ensure functional parity. Verify mechanical footprint compatibility if substituting with similar industry components.
