DKLP-0331-0520

Common Mode Chokes Overview

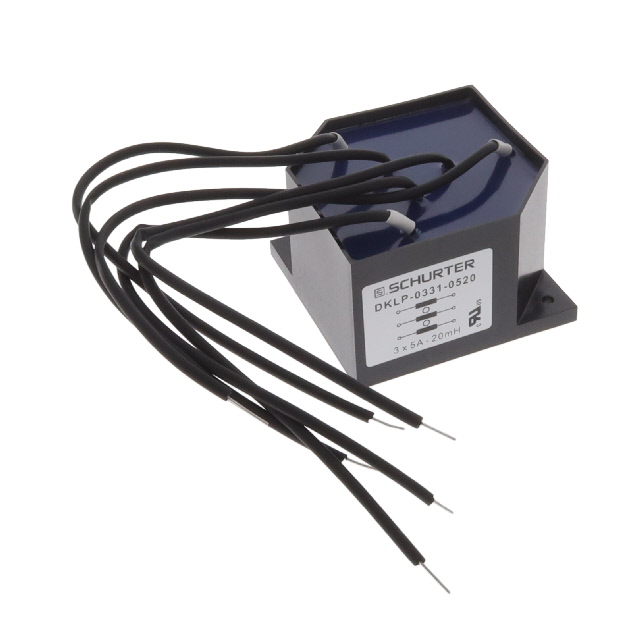

The DKLP-0331-0520 is a three-line common mode choke manufactured by Schurter Inc. It features through-hole termination and supports a maximum DC current of 5A with a DC resistance of 100mOhms. The component provides high inductance for compensated noise suppression applications.

Common Mode Chokes Feature Summary

• Designed as a compensated high inductance choke for three-phase systems
• Provides common mode noise suppression via multi-channel filtering
• Utilizes through-hole mounting for secure chassis or panel installation

Common Mode Chokes Applications

• Three-phase power line noise suppression
• Industrial equipment EMC filtering
• Compensated choke circuits requiring high inductance

Common Mode Chokes Procurement Notes

Verify the exact datasheet specifications before integration, as distributor listings may vary. Confirm that the through-hole package and 5A current rating align with your circuit design requirements. Ensure compatibility with your PCB layout or chassis mounting constraints prior to ordering.

Common Mode Chokes Selection Notes

Select this component when three-phase common mode filtering is required. The 5A rating suits moderate power applications. Verify that the through-hole form factor fits your assembly process. Compare against single-phase alternatives if system topology differs.

Common Mode Chokes Part Context

This part belongs to Schurter's DKLP series of current compensated chokes. These components are engineered for robust noise suppression in industrial environments. The series typically offers high inductance values to effectively attenuate common mode interference across multiple conductors.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Schurter technical support for direct equivalents or cross-reference based on specific inductance and current requirements.
