DLFL-0125-0501

Common Mode Chokes Overview

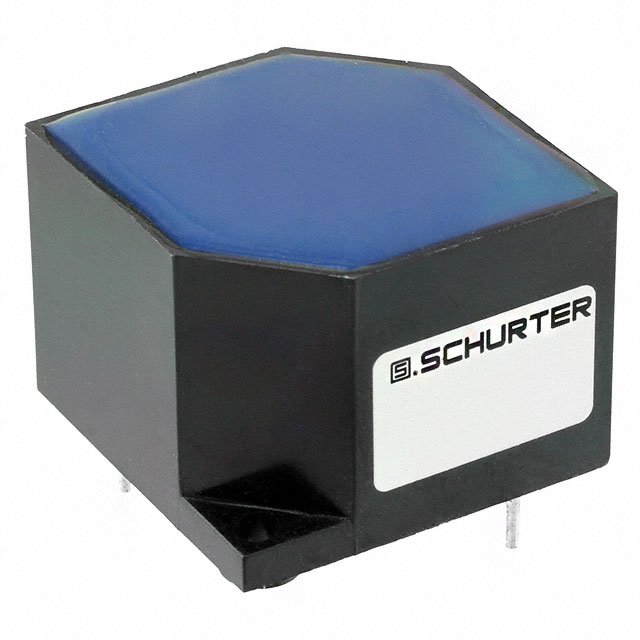

The DLFL-0125-0501 is a two-line common mode choke manufactured by SCHURTER Inc. It features through-hole mounting and is designed for circuit protection against electromagnetic interference. The component has a rated current of 5A and a DC resistance of 120mOhm. It is classified as a linear/saturating choke suitable for various electronic applications requiring noise suppression.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line circuits
• Utilizes through-hole mounting technology for secure PCB attachment
• Constructed as a linear saturating choke for stable inductance characteristics

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise suppression
• Electromagnetic interference reduction in electronic devices

Common Mode Chokes Procurement Notes

Verify the specific part number DLFL-0125-0501 against official SCHURTER documentation to ensure authenticity. Confirm that the through-hole package and 5A rating match your design requirements. Check for RoHS compliance status if environmental regulations apply to your manufacturing process. Ensure compatibility with your assembly equipment for through-hole components.

Common Mode Chokes Selection Notes

Select this component when a two-line common mode choke with a 5A current rating is required. Consider its through-hole mounting style if surface mount options are not feasible. Evaluate the 120mOhm DC resistance to ensure it meets your power loss constraints. Verify that the linear saturating characteristic aligns with your signal integrity needs.

Common Mode Chokes Part Context

This component belongs to the DLFL series of common mode chokes from SCHURTER Inc. The series is designed for general-purpose noise suppression in electronic circuits. The DLFL-0125-0501 variant specifically offers a 5A rating and through-hole configuration, distinguishing it from surface mount or higher/lower current variants within the same family.

Common Mode Chokes Replacement Considerations

Consult SCHURTER's official substitution guide for verified alternatives. Ensure any replacement maintains the 5A current rating and through-hole mounting style. Verify that the inductance and DC resistance values are compatible with your circuit design to prevent performance degradation.
