DLFL-0132-45D2

Common Mode Chokes Overview

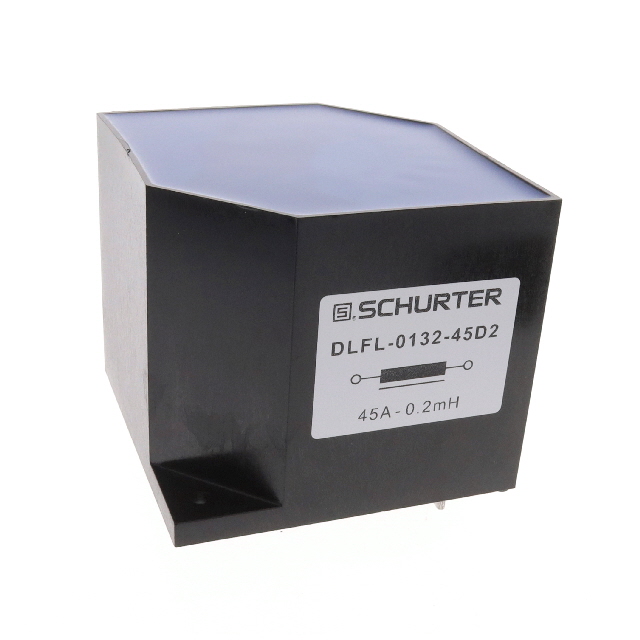

The Schurter DLFL-0132-45D2 is a linear saturating choke designed for through-hole mounting. It features a 0.2 mH inductance and supports a current rating of 45 A with a DC resistance of 6 mOhm. The component measures 80 x 80 x 70.8 mm and functions as a two-line common mode choke.

Common Mode Chokes Feature Summary

• Linear saturating design for stable performance under varying load conditions
• Two-line configuration for common mode noise suppression
• Through-hole construction for secure board integration

Common Mode Chokes Applications

• Industrial power supply filtering
• Electromagnetic interference suppression in high-current circuits
• Power electronics input/output stages

Common Mode Chokes Procurement Notes

Verify the exact part number DLFL-0132-45D2 against official Schurter documentation to confirm specifications. Ensure compatibility with through-hole assembly processes and thermal management requirements for 45 A operation. Cross-reference datasheets for mechanical dimensions and electrical ratings before procurement.

Common Mode Chokes Selection Notes

Select this component when a linear saturating choke is required for high-current applications. Consider the 45 A rating and 6 mOhm resistance for efficiency needs. Verify that the 80 x 80 x 70.8 mm footprint fits the design constraints and that through-hole mounting is suitable for the target PCB layout.

Common Mode Chokes Part Context

This component belongs to Schurter's fixed inductor portfolio, specifically within the saturating choke category. It is engineered for robust performance in demanding electrical environments, providing reliable common mode noise reduction for two-line systems.

Common Mode Chokes Replacement Considerations

Consult Schurter technical support or authorized distributors for verified substitute part numbers. Do not assume cross-compatibility with other models without explicit manufacturer confirmation.
