DLFL-0147-12D5

Common Mode Chokes Overview

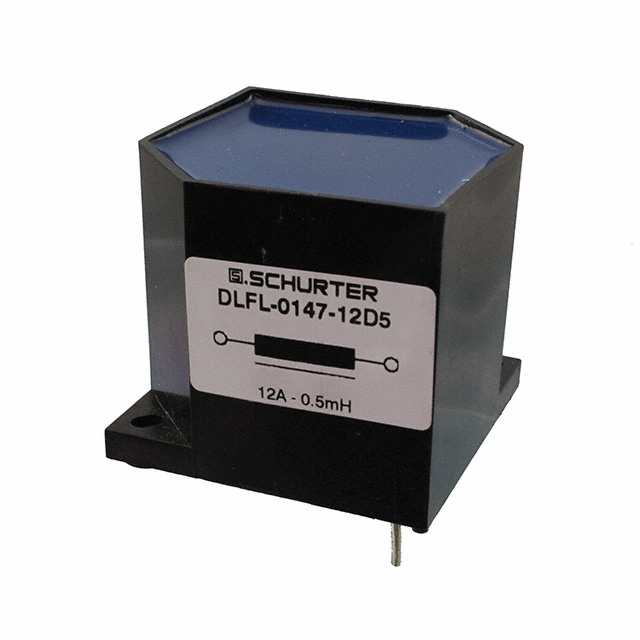

The DLFL-0147-12D5 is a two-line common mode choke manufactured by Schurter Inc. It features a through-hole mounting style with radial leads. The component has a maximum DC current rating of 12 A and a maximum DC resistance of 38 mOhms. It operates within a temperature range of -25°C to +100°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line circuits
• Designed for through-hole PCB mounting with radial leads
• Rated for high continuous DC current handling

Common Mode Chokes Applications

• AC power input filtering
• EMI suppression in electronic equipment
• Signal line protection

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the DLFL-0147-12D5 before procurement, as manufacturer specifications may be updated. Confirm that the through-hole package dimensions and lead spacing match your PCB footprint requirements. Ensure the operating temperature range of -25°C to +100°C meets your environmental conditions. Cross-reference the 12A current rating and 38 mOhms DCR against your circuit design constraints to ensure proper performance.

Common Mode Chokes Selection Notes

Select this component when a robust common mode choke is required for two-line applications with high current demands. The 12A rating supports substantial load currents while maintaining low DC resistance. The through-hole construction offers mechanical stability compared to surface-mount alternatives. Verify compatibility with the target voltage ratings and frequency response characteristics for effective noise attenuation.

Common Mode Chokes Part Context

This part belongs to Schurter's DLFL series of common mode chokes. These components are engineered for reliable noise suppression in industrial and commercial electronics. The DLFL series typically utilizes high-permeability core materials to achieve effective common mode rejection across a wide frequency spectrum.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Schurter technical support or authorized distributors for equivalent parts with matching electrical and mechanical specifications.
