DLFL-0147-25D2

Common Mode Chokes Overview

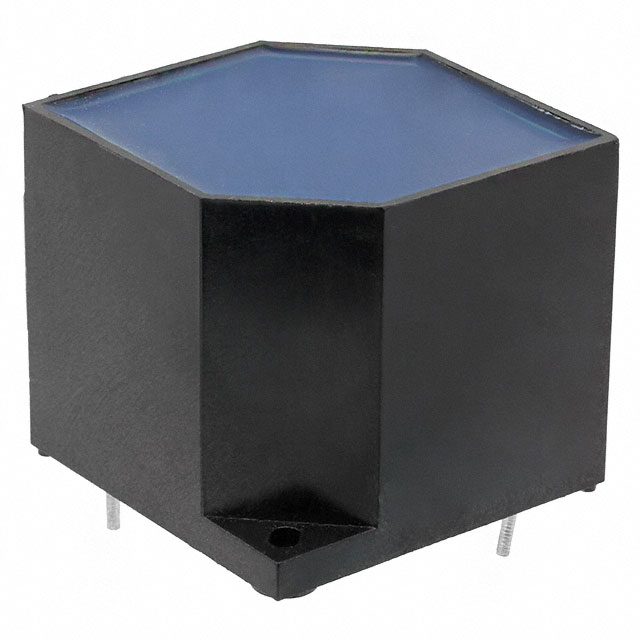

The Schurter DLFL-0147-25D2 is a through-hole common mode choke belonging to the DLFL series. It features a saturated core design with two lines and supports a current rating of 25A. The component has a DC resistance (DCR) of 10mOhm. It is designed for PCB mounting via radial leads.

Common Mode Chokes Feature Summary

• Saturated core construction for stable inductance under high current conditions
• Two-line configuration for effective common mode noise suppression
• Through-hole radial lead termination for printed circuit board integration

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Noise reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify the exact part number DLFL-0147-25D2 against official Schurter documentation to confirm specifications. Ensure compatibility with your PCB footprint and thermal requirements. Check RoHS compliance status if required by your manufacturing standards. Confirm lead availability and lead times directly with authorized distributors or the manufacturer.

Common Mode Chokes Selection Notes

Select this component when a 25A current rating and low DC resistance are required for common mode noise filtering. The saturated core provides consistent performance at high currents. Ensure the through-hole package fits your assembly process and that the operating temperature range meets your application needs.

Common Mode Chokes Part Context

This component is part of Schurter's DLFL series of fixed inductors. These chokes are engineered for robust performance in power electronics applications. The series offers various current ratings and inductance values to suit different filtering requirements.

Common Mode Chokes Replacement Considerations

Consult Schurter's official cross-reference tools or datasheets for verified substitutes. Ensure any replacement matches the 25A rating, 10mOhm DCR, and through-hole radial package dimensions.
