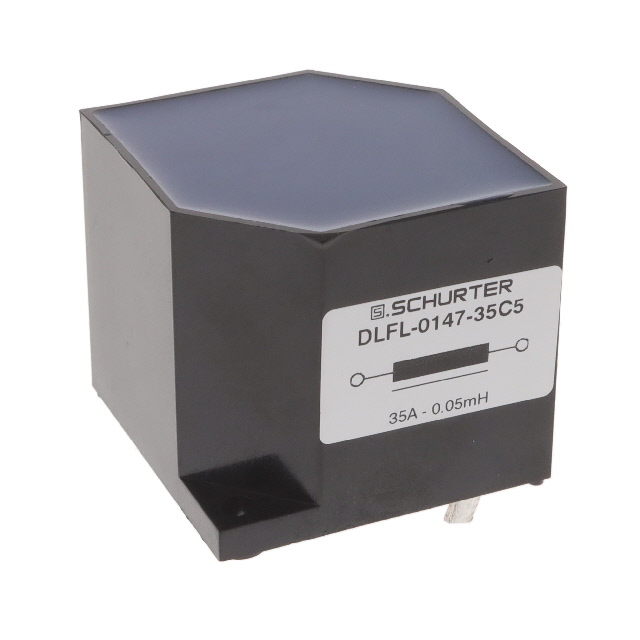

DLFL-0147-35C5 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 35A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLFL-0147-35C5
- Description：CMC 35A 2LN TH
- Series：DLFL
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：35A
- DC Resistance (DCR) (Max)：5.3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：440V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.969" L x 1.969" W (50.00mm x 50.00mm)
- Height (Max)：-
- Package / Case：Radial
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DLFL-0147-35C5
Common Mode Chokes Overview
The DLFL-0147-35C5 is a two-line common mode choke manufactured by Schurter Inc. It features a maximum current rating of 35A and an AC voltage rating of 440V. The component has a DC resistance (DCR) of 5.3 mOhm and utilizes through-hole mounting. It operates within a temperature range of -25°C to 100°C.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for two-line circuits
- Supports high current applications up to 35A
- Designed for through-hole installation
Common Mode Chokes Applications
- Power supply input filtering
- Industrial equipment EMI reduction
- AC line noise suppression
Common Mode Chokes Procurement Notes
Verify the specific datasheet version for the DLFL-0147-35C5 to confirm mechanical dimensions and pinout compatibility with your PCB layout. Ensure that the operating environment stays within the specified -25°C to 100°C range. Cross-reference the 35A current rating against your peak load requirements to prevent saturation. Confirm that the 440V AC rating exceeds your system's maximum line voltage.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring robust common mode noise attenuation at high currents. The low DCR of 5.3 mOhm minimizes power loss in the signal path. Consider the through-hole form factor if surface-mount options are unsuitable for your assembly process or mechanical stress requirements.
Common Mode Chokes Part Context
This part belongs to Schurter's DLFL series of saturating chokes. These components are engineered for electromagnetic interference (EMI) suppression in AC power lines. The series offers various current ratings and voltage configurations to suit different industrial and commercial power distribution needs.
Common Mode Chokes Replacement Considerations
Check for direct substitutes from Schurter with similar 35A ratings and 440V AC capabilities. Verify that any alternative maintains the same through-hole footprint and 5.3 mOhm DCR characteristics to ensure circuit performance parity.
