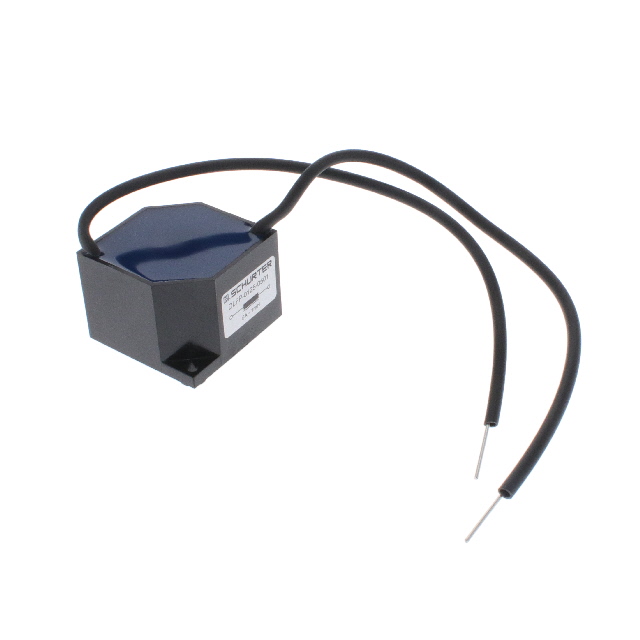

DLFP-0125-0501 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 5A 2LN CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLFP-0125-0501
- Description：CMC 5A 2LN CHASSIS MOUNT
- Series：DLFP
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：120mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：440V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Chassis Mount
- Size / Dimension：1.575" L x 1.575" W (40.00mm x 40.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DLFP-0125-0501
Common Mode Chokes Overview
The DLFP-0125-0501 is a common mode choke manufactured by Schurter Inc., designed for chassis mounting applications. This component belongs to the linear/saturating choke category and supports two lines of operation. It features a rated current capacity of 5A with a direct current resistance (DCR) of 120mOhm. The device is engineered to handle electromagnetic interference in electronic circuits, providing effective filtering capabilities through its dual-line configuration suitable for industrial and commercial power supply environments.
Common Mode Chokes Feature Summary
- Dual-line common mode filtering architecture
- Chassis mount mechanical design
- Linear/saturating choke technology
Common Mode Chokes Applications
- Power supply input filtering
- Industrial equipment EMI suppression
- Commercial electronics noise reduction
Common Mode Chokes Procurement Notes
Verify the manufacturer part number DLFP-0125-0501 against official Schurter documentation to ensure authenticity. Confirm that the component matches the specified 5A rating and 120mOhm DCR parameters. Check for RoHS compliance status if required by your manufacturing standards. Ensure the chassis mount style fits your enclosure design constraints before finalizing procurement decisions.
Common Mode Chokes Selection Notes
Select this component when dual-line common mode noise suppression is required in chassis-mounted configurations. The 5A current rating suits moderate power applications. Consider the 120mOhm DCR impact on circuit efficiency. Verify physical dimensions against available mounting space. Ensure compatibility with operating temperature ranges typical for industrial environments.
Common Mode Chokes Part Context
This component falls under Schurter's common mode choke portfolio, specifically designed for linear and saturating applications. It serves as an electromagnetic interference filter for electronic systems requiring robust noise suppression in power lines.
Common Mode Chokes Replacement Considerations
No publicly confirmed substitute part numbers are available in the provided documentation. Consult Schurter technical support for potential alternatives matching specific electrical and mechanical requirements.
