Description：CMC 8A 2LN CHASSIS MOUNT
Series：DLFP
Mfr：SCHURTER Inc.
Package：Bulk

SKU:cc3635da6759 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

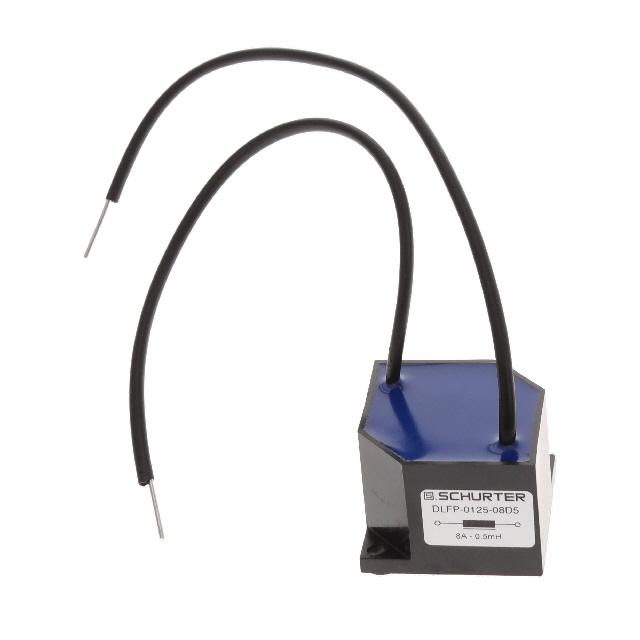

DLFP-0125-08D5 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 8A 2LN CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DLFP-0125-08D5

Description：CMC 8A 2LN CHASSIS MOUNT
Series：DLFP
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：54mOhm
Voltage Rating - DC：-
Voltage Rating - AC：440V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Chassis Mount
Size / Dimension：1.575" L x 1.575" W (40.00mm x 40.00mm)
Height (Max)：-
Package / Case：Nonstandard
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DLFP-0125-08D5

DLFP-0125-08D5

Common Mode Chokes Overview

The DLFP-0125-08D5 is a linear saturating common mode choke manufactured by Schurter Inc. It features an iron core and is designed for chassis mounting. The component supports a current rating of 8A with a DC resistance of 54mOhm. It operates within a temperature range of -55°C to 125°C. The device is RoHS3 compliant and utilizes through-hole installation.
