DLFP-0132-45D2

Common Mode Chokes Overview

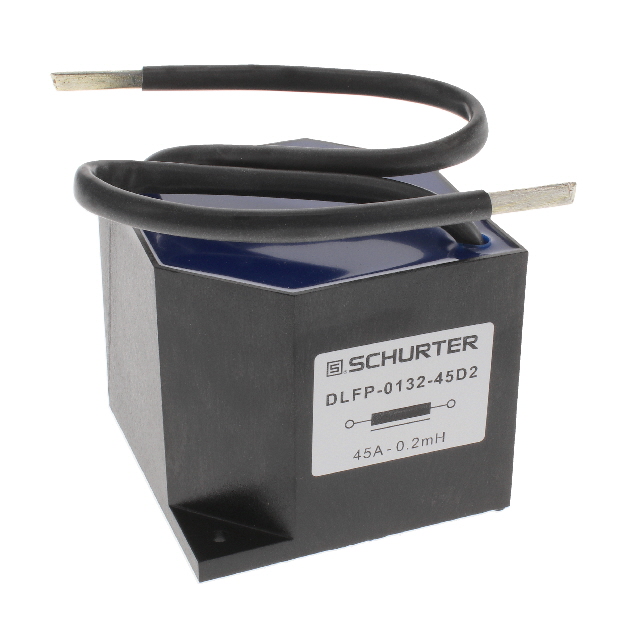

The DLFP-0132-45D2 is a linear/saturating common mode choke manufactured by Schurter Inc. It features an iron core and is designed for through-hole mounting. The component provides an inductance of 200 µH with a DC current rating of 45 A. Its maximum DC resistance is specified at 6 mOhm (6000 µohm). This device belongs to the DLFP series and functions as a two-line common mode choke filter.

Common Mode Chokes Feature Summary

• Linear saturating choke design utilizing an iron core
• Two-line configuration for common mode noise suppression
• Through-hole termination style for PCB integration

Common Mode Chokes Applications

• Common mode noise filtering in power lines
• EMI suppression for high-current DC applications
• Power supply input stages requiring high saturation current

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the DLFP-0132-45D2 to confirm mechanical dimensions and thermal characteristics. Ensure that the through-hole footprint matches the target PCB layout. Confirm that the 45 A current rating aligns with the system's peak load requirements before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a high-current common mode choke is required for linear saturation behavior. The 200 µH inductance and low DC resistance make it suitable for applications demanding minimal voltage drop under heavy loads. Compare against other DLFP series variants if different inductance or current ratings are needed.

Common Mode Chokes Part Context

This part is part of Schurter's DLFP series of common mode chokes. These components are engineered for robust performance in industrial and commercial power electronics. The DLFP series typically offers high current handling capabilities and stable inductance characteristics under varying load conditions.

Common Mode Chokes Replacement Considerations

Check for other DLFP series parts with similar 200 µH inductance and 45 A ratings. Verify mechanical compatibility and electrical specifications before substituting.
