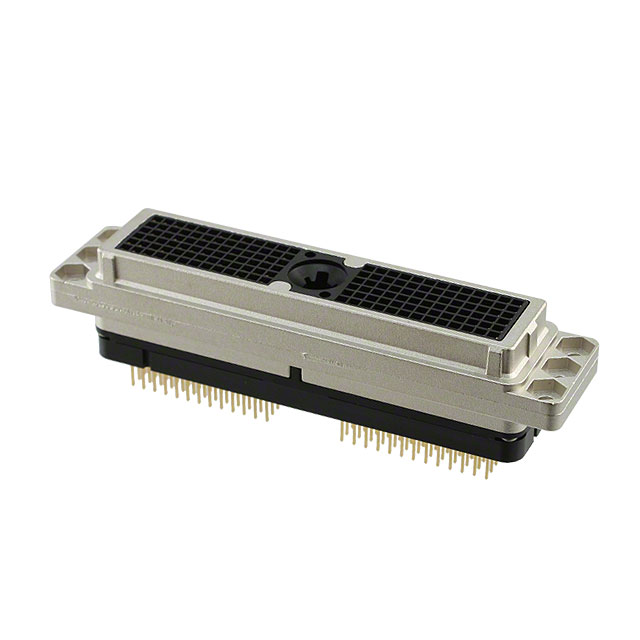

Specialized Backplane Connectors DLM1-156RW6B product image

DLM1-156RW6B

$307.81

Description：CONN RCPT 156POS PNL MNT
Series：DLM
Mfr：ITT Cannon, LLC
Package：Bulk

SKU:3b9d06f419d0 Category: Specialized Backplane Connectors Brand: ITT Cannon, LLC

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DLM1-156RW6B is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists ITT Cannon, LLC. Its product description is CONN RCPT 156POS PNL MNT. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for DLM1-156RW6B

Description：CONN RCPT 156POS PNL MNT
Series：DLM
Mfr：ITT Cannon, LLC
Package：Bulk
Connector Usage：-
Connector Type：Receptacle, Hermaphroditic Contacts
Connector Style：-
Number of Positions：156
Number of Positions Loaded：All
Pitch：0.100" (2.54mm)
Number of Rows：6
Number of Columns：26
Mounting Type：Panel Mount
Termination：Solder
Contact Layout, Typical：-
Features：Actuating Camshaft Socket, Shielding, Zero Insertion Force (ZIF)
Contact Finish：Gold
Contact Finish Thickness：50.0µin (1.27µm)
Color：Black

Specialized Backplane Connectors datasheet and documents for DLM1-156RW6B
