DLP0QSN600HL2D

Common Mode Chokes Overview

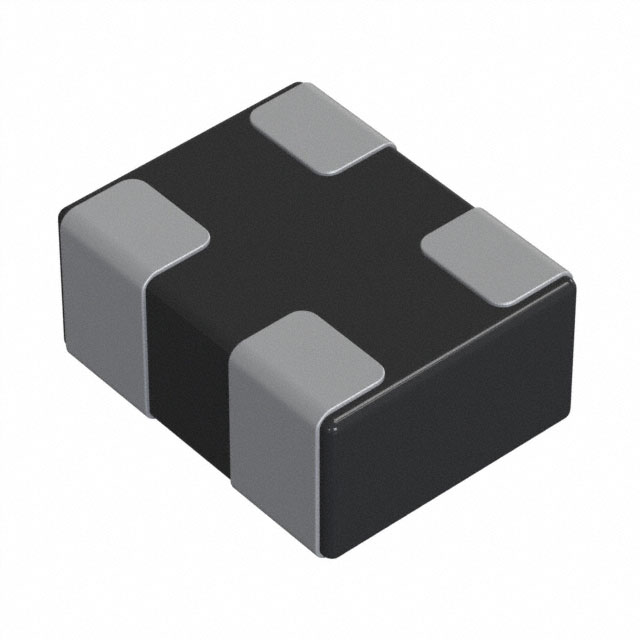

The DLP0QSN600HL2D is a two-line common mode choke manufactured by Murata Electronics, designed for surface-mount PCB assembly. It features an impedance of 60 Ohms at a test frequency of 100 MHz and supports a maximum DC current of 50 mA. The component exhibits a typical DC resistance of 3.8 Ohms per line. It operates within a temperature range of -40°C to +85°C and utilizes a compact 03025 (0807 metric) package with dimensions of 0.85 mm in length, 0.65 mm in width, and 0.45 mm in height.

Common Mode Chokes Feature Summary

• Provides effective suppression of common mode noise on dual signal lines
• Utilizes a compact film-type construction for space-constrained designs
• Supports standard surface-mount technology for automated assembly

Common Mode Chokes Applications

• High-speed data interface protection
• Signal line filtering in portable electronics
• Common mode noise reduction in communication modules

Common Mode Chokes Procurement Notes

Verify the specific manufacturing lot and date code upon receipt to ensure compliance with project requirements. Confirm that the component matches the exact part number DLP0QSN600HL2D, as Murata may recommend alternate parts such as the DLM0NSM900HY2D for similar applications. Ensure storage conditions adhere to moisture sensitivity level guidelines before soldering.

Common Mode Chokes Selection Notes

Select this component when a low-profile, two-line filter is required for high-frequency noise attenuation. The 60 Ohm impedance rating targets specific interference frequencies around 100 MHz. Consider the 50 mA current limit and 3.8 Ohm DC resistance to ensure compatibility with the target circuit's power budget and signal integrity requirements without excessive voltage drop.

Common Mode Chokes Part Context

This component belongs to the DLP0N series of common mode chokes from Murata Electronics. It is categorized under passive components specifically designed for electromagnetic interference suppression. The product utilizes a film-type core material to achieve its specified electrical characteristics within a small footprint suitable for modern miniaturized electronic devices.

Common Mode Chokes Replacement Considerations

Murata suggests the DLM0QSB120HY2D or DLM0NSM900HY2D as potential alternates. Verify impedance, current rating, and physical dimensions before substitution.
