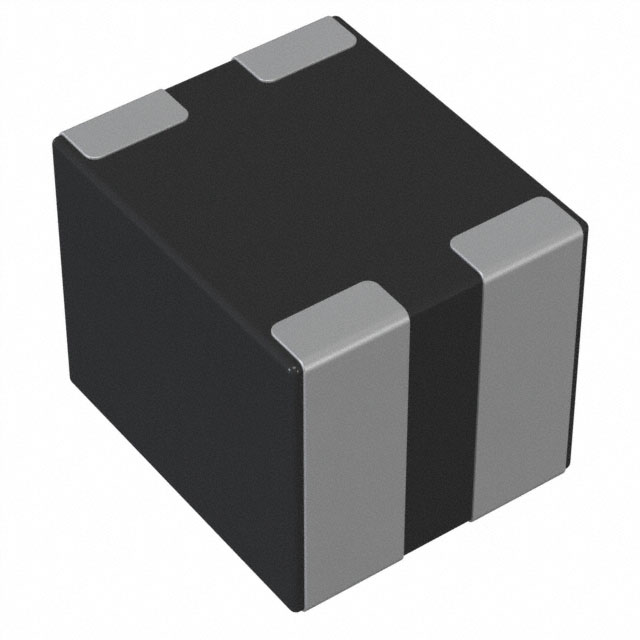

DLP11SN121SL2L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 140MA 2LN 120 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLP11SN121SL2L
- Description：CMC 140MA 2LN 120 OHM SMD
- Series：DLP11
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：140mA
- DC Resistance (DCR) (Max)：2.5Ohm
- Voltage Rating - DC：5V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
- Height (Max)：0.036" (0.92mm)
- Package / Case：0504 (1210 Metric), 4 Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：120 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for DLP11SN121SL2L
Common Mode Chokes Overview
The Murata Electronics DLP11SN121SL2L is a signal line common mode choke filter designed for surface mount technology. It operates within a temperature range of -40°C to +85°C and utilizes a 0504 (1210 metric) package with four leads. The component features an impedance of 120 Ohms with a 20% tolerance, supporting a maximum DC current of 140 mA. Its maximum DC resistance is specified at 3.38 Ohms. This device belongs to the DLP11 series and is classified as a film type inductor.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for signal lines
- Utilizes a compact surface mount footprint for PCB integration
- Constructed using film type inductor technology
Common Mode Chokes Applications
- Signal line filtering in electronic circuits
- Common mode noise reduction applications
Common Mode Chokes Procurement Notes
Verify component authenticity through authorized channels due to potential availability constraints. Confirm RoHS compliance status via official documentation before procurement. Ensure storage conditions align with manufacturer specifications to maintain performance integrity during handling and assembly processes.
Common Mode Chokes Selection Notes
Select this component when a 120 Ohm impedance is required for signal line protection. Consider the 140 mA current rating and 0504 package dimensions for space-constrained designs. Verify compatibility with SMD/SMT assembly processes and operating temperature requirements ranging from -40°C to +85°C.
Common Mode Chokes Part Context
This part belongs to the DLP11 series of common mode chokes manufactured by Murata Electronics. It is categorized under passive components, specifically inductors, chokes, and coils. The product serves as an EMI filter solution for suppressing electromagnetic interference in sensitive signal paths.
Common Mode Chokes Replacement Considerations
Murata suggests the DLM0NSM900HY2D as an alternate part. Verify electrical parameters and physical dimensions against original requirements before substitution.
