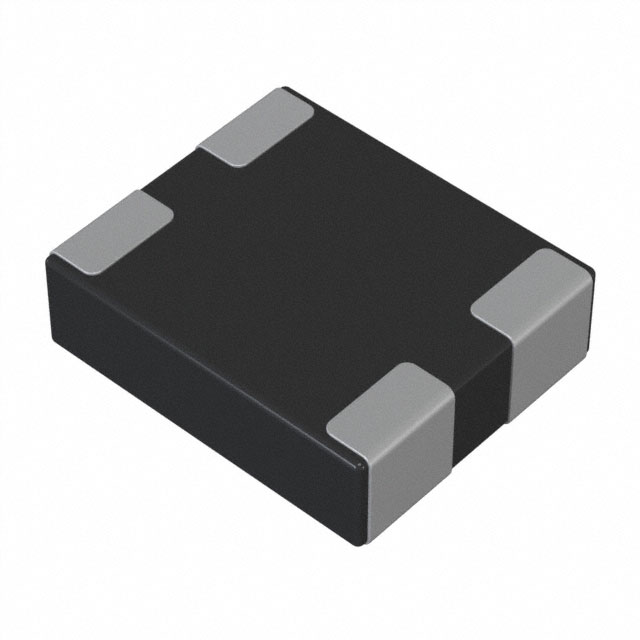

DLP11TB800UL2L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 100MA 2LN 80 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLP11TB800UL2L
- Description：CMC 100MA 2LN 80 OHM SMD
- Series：DLP11
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：1.88Ohm
- Voltage Rating - DC：5V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
- Height (Max)：0.014" (0.35mm)
- Package / Case：0504 (1210 Metric), 4 Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：80 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for DLP11TB800UL2L
Common Mode Chokes Overview
The Murata DLP11TB800UL2L is a surface-mount common mode choke coil designed for high-speed differential signal lines. It features a compact 0504 package with dimensions of 1.25 x 1 x 0.3mm. The component offers an impedance of 80 Ω at 100 MHz, a maximum DC current rating of 100 mA, and a DC resistance of 1.5Ω. It operates within a temperature range of -40°C to +85°C.
Common Mode Chokes Feature Summary
- High magnetic coupling factor (k>=0.98) ensures effective noise suppression without distorting high-speed differential signal waveforms.
- Designed to match line impedance, improving the differential mode cutoff frequency for ultra-high-speed applications like USB 3.0.
- Compact and thin profile suitable for dense installation in small mobile devices.
Common Mode Chokes Applications
- Noise suppression for SuperSpeed USB 3.0 interfaces
- Common mode noise suppression in digital cameras
- Signal integrity protection in laptop computers
- EMI filtering in mobile telephone systems
Common Mode Chokes Procurement Notes
Verify the specific suffix UL2L against official Murata documentation to confirm pinout and electrical characteristics. Ensure the procurement source provides valid RoHS compliance data. Cross-reference the part number with the manufacturer's latest lifecycle status to avoid obsolete components during production planning.
Common Mode Chokes Selection Notes
Select this component when space constraints require a 0504 footprint for high-frequency EMI suppression. It is appropriate for circuits requiring 80 Ω impedance at 100 MHz with limited current capacity. Consider thermal management within the -40°C to +85°C operating range for final assembly validation.
Common Mode Chokes Part Context
This component belongs to the Murata DLP series of SMD common mode chokes. The series is engineered specifically for suppressing electromagnetic interference in high-speed data transmission lines while maintaining signal integrity. The DLP11TB800UL2L represents a specialized variant optimized for USB 3.0 compliance.
Common Mode Chokes Replacement Considerations
Official documentation for related models suggests DLM0NSN500HY2D as a potential alternate for similar form factors. Verify impedance and current ratings carefully before substitution. No direct cross-model functional equivalence is guaranteed without specific datasheet comparison.
