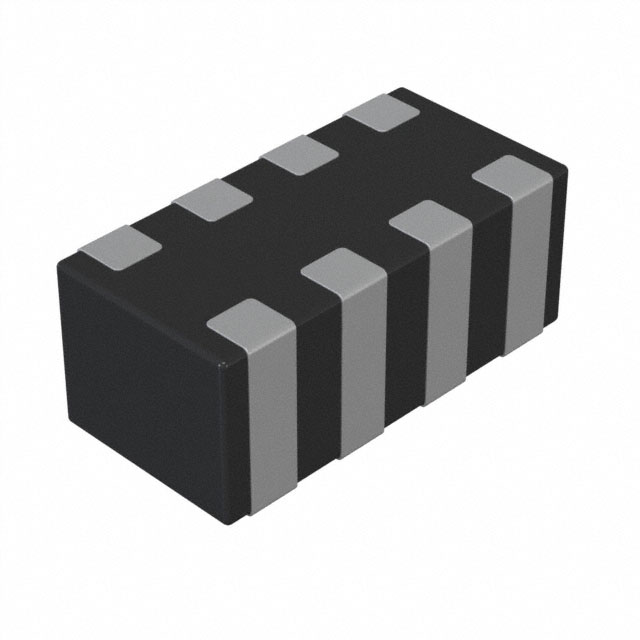

DLP2ADN121HL4L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 120MA 4LN 120 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLP2ADN121HL4L
- Description：CMC 120MA 4LN 120 OHM SMD
- Series：DLP2A
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：4
- Current Rating (Max)：120mA
- DC Resistance (DCR) (Max)：2.5Ohm
- Voltage Rating - DC：5V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.079" L x 0.039" W (2.00mm x 1.00mm)
- Height (Max)：0.036" (0.92mm)
- Package / Case：0804 (2010 Metric), 8 Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：120 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for DLP2ADN121HL4L
Common Mode Chokes Overview
The DLP2ADN121HL4L is a four-line common mode choke coil manufactured by Murata Electronics, designed for surface-mount technology. It features an impedance of 120 Ohms at a test frequency of 100 MHz and supports a maximum DC current of 120 mA. The component has a maximum DC resistance of 2.5 Ohms and operates within a temperature range of -40°C to +85°C. Packaged in a compact SMD form factor, it serves as an electromagnetic interference filter for high-density circuit applications.
Common Mode Chokes Feature Summary
- Provides simultaneous noise suppression across four independent signal lines
- Utilizes wirewound construction for effective common mode attenuation
- Designed for surface-mount integration into compact electronic assemblies
Common Mode Chokes Applications
- High-speed data interface protection
- Multi-channel signal line filtering
- Electromagnetic interference suppression in portable devices
Common Mode Chokes Procurement Notes
Verify the specific ordering suffix against official Murata documentation to confirm exact packaging and tape specifications. Confirm that the component meets all required automotive or industrial qualification standards if applicable. Ensure compatibility with existing PCB footprint designs before finalizing procurement orders.
Common Mode Chokes Selection Notes
Select this component when multi-line noise suppression is required in space-constrained environments. Evaluate the 120 mA current rating against peak operational loads to prevent saturation. Consider the 120 Ohm impedance profile relative to the target frequency spectrum for optimal signal integrity preservation.
Common Mode Chokes Part Context
This part belongs to the DLW series of common mode chokes from Murata Electronics. It is specifically engineered for suppressing electromagnetic interference in multiple signal paths simultaneously. The design prioritizes miniaturization while maintaining effective noise filtration capabilities for sensitive electronic circuits.
Common Mode Chokes Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material.
