DLW32MH101XK2L

Common Mode Chokes Overview

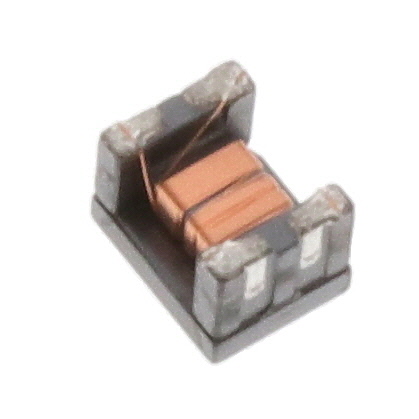

The DLW32MH101XK2L is a two-line common mode choke from the Murata DLW32_H series, designed for surface mount PCB assembly. It features an inductance of 100 µH measured at 100 kHz with a tolerance of -30% to +50%. The component supports a maximum DC current of 100 mA and exhibits a maximum DC resistance of 2.8 ohms. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification. The physical dimensions are 3.2 mm in length, 2.5 mm in width, and 2.35 mm in height, conforming to the 1210 (3225 metric) package.

Common Mode Chokes Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• High-temperature operation up to 125°C
• Compact 1210 surface mount footprint

Common Mode Chokes Applications

• Automotive electronic circuit protection
• Common mode noise suppression in data lines
• Signal integrity enhancement in compact PCBs

Common Mode Chokes Procurement Notes

Verify the specific suffix against official Murata documentation to confirm exact electrical tolerances and packaging configurations. Ensure the selected variant matches the required impedance characteristics and thermal ratings for the target application environment before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when space-constrained designs require robust common mode filtering with high-temperature resilience. The 1210 package offers a balance between current handling capabilities and board real estate efficiency. Confirm that the 100 mA current rating aligns with the operational requirements of the protected circuitry.

Common Mode Chokes Part Context

This part belongs to the DLW32_H series of wire wound chokes manufactured by Murata Electronics. The series is engineered for high-performance noise suppression in small form factors. These components utilize advanced ceramic and winding technologies to achieve stable inductance values across wide temperature ranges.

Common Mode Chokes Replacement Considerations

Consult official Murata substitution guides for verified equivalents. Cross-referencing requires matching inductance, current ratings, and package dimensions to ensure functional compatibility without redesigning the PCB layout.
