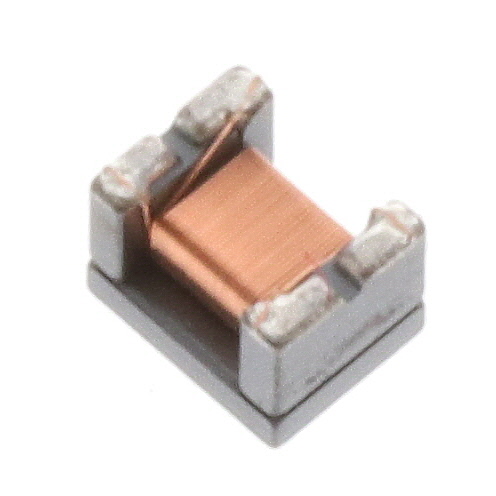

DLW32SH101XK2L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 100UH 150MA 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLW32SH101XK2L
- Description：CMC 100UH 150MA 2LN SMD AEC-Q200
- Series：DLW32
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：150mA
- DC Resistance (DCR) (Max)：1.5Ohm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：100 µH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for DLW32SH101XK2L
Common Mode Chokes Overview
The DLW32SH101XK2L is a surface-mount common mode choke from the Murata EMIFIL DLW32SH series. It features an inductance of 100 µH with a tolerance of -30% to +50%. The component supports a maximum DC current of 150 mA and has a maximum DC resistance of 1.5 Ohms. It operates within a temperature range of -40°C to +125°C and meets AEC-Q200 automotive qualification standards. The physical dimensions are 3.2 mm x 2.5 mm x 2.5 mm in a 1210 package.
Common Mode Chokes Feature Summary
- Designed for noise suppression in automotive area networks such as CAN and CAN-FD.
- AEC-Q200 qualified for automotive reliability requirements.
- Unshielded construction suitable for compact PCB layouts.
Common Mode Chokes Applications
- CAN bus network noise suppression
- CAN-FD network noise suppression
- Automotive electronic control unit signal lines
Common Mode Chokes Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct electrical tolerances and packaging options. Confirm that the 1.5 Ohm DC resistance and 150 mA current rating align with the target circuit design requirements before finalizing procurement orders.
Common Mode Chokes Selection Notes
Select this component when designing for automotive CAN or CAN-FD interfaces requiring high inductance in a small footprint. Ensure the operating environment stays within the specified -40°C to +125°C range. Compare the 1.5 Ohm DCR against voltage drop constraints in the specific application circuit.
Common Mode Chokes Part Context
This part belongs to the DLW32SH series, which focuses on high-inductance common mode chokes for automotive applications. It shares the 1210 package form factor with other variants in the DLW32 family but offers distinct electrical characteristics tailored for sensitive data line protection.
Common Mode Chokes Replacement Considerations
DLW32SH101XF2L is a verified substitute within the same series offering similar functionality.
Common Mode Chokes FAQ
What is the inductance tolerance for this component?
The inductance tolerance is specified as -30% to +50% at 0.1 MHz.
Is this component suitable for automotive use?
Yes, it is AEC-Q200 qualified and designed for automotive area networks like CAN and CAN-FD.
