DLW32SH510XF2L

$1.02

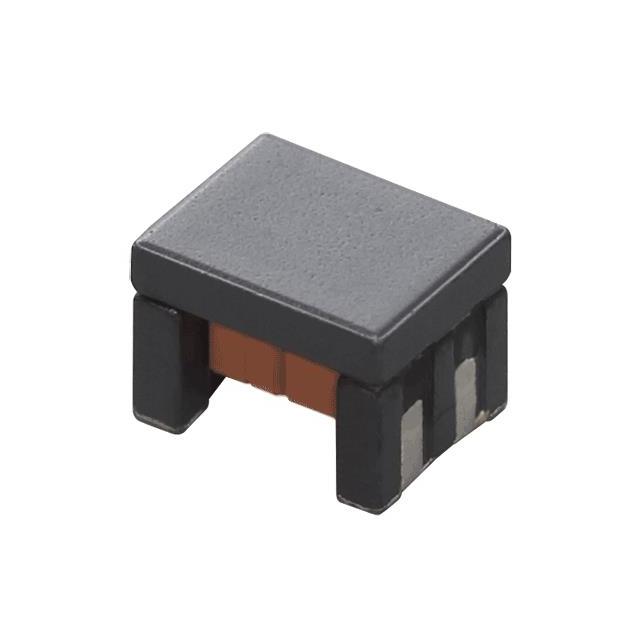

Description：CMC 51UH 200MA 2LN SMD AEC-Q200
Series：DLW32
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a481fdb68997 Category: Common Mode Chokes Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DLW32SH510XF2L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 51UH 200MA 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DLW32SH510XF2L

Description：CMC 51UH 200MA 2LN SMD AEC-Q200
Series：DLW32
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：200mA
DC Resistance (DCR) (Max)：700mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max)：0.098" (2.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：51 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for DLW32SH510XF2L

DLW32SH510XF2L

Common Mode Chokes Overview

The DLW32SH510XF2L is a two-line common mode choke manufactured by Murata Electronics, designed for surface-mount installation. It features an inductance of 51 µH with a tolerance range of -30% to +50%. The component supports a maximum DC current of 200 mA and exhibits a maximum DC resistance of 700 mΩ. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification. The physical dimensions are 3.2 mm in length, 2.5 mm in width, and 2.35 mm in height, corresponding to the 1210 package size.

Common Mode Chokes Feature Summary

Provides effective noise suppression for automotive area networks such as CAN and CAN-FD
Constructed using wirewound technology for reliable signal integrity
Certified to AEC-Q200 standards for automotive application durability

Common Mode Chokes Applications

Noise suppression in automotive CAN bus systems
Noise suppression in automotive CAN-FD networks
Automotive electronic circuit protection

Common Mode Chokes Procurement Notes

Verify the specific suffix XF2L against official Murata documentation to confirm packaging configuration and tape-and-reel specifications. Ensure the selected variant matches the required inductance tolerance and current rating for the target automotive application. Cross-reference the AEC-Q200 certification status directly with the manufacturer's datasheet to validate compliance requirements.

Common Mode Chokes Selection Notes

Select this component when designing for automotive environments requiring robust common mode filtering for high-speed data lines. The 1210 footprint offers a balance between performance and board space efficiency. Consider the 200 mA current rating and 700 mΩ resistance when evaluating power loss and thermal management in the specific circuit layout.

Common Mode Chokes Part Context

This part belongs to the DLW32SH series of EMIFIL common mode chokes from Murata. These components are specifically engineered for automotive electronics, utilizing wirewound construction to handle demanding electromagnetic interference conditions. The series is characterized by its compact SMD form factor and compliance with strict automotive reliability standards.
