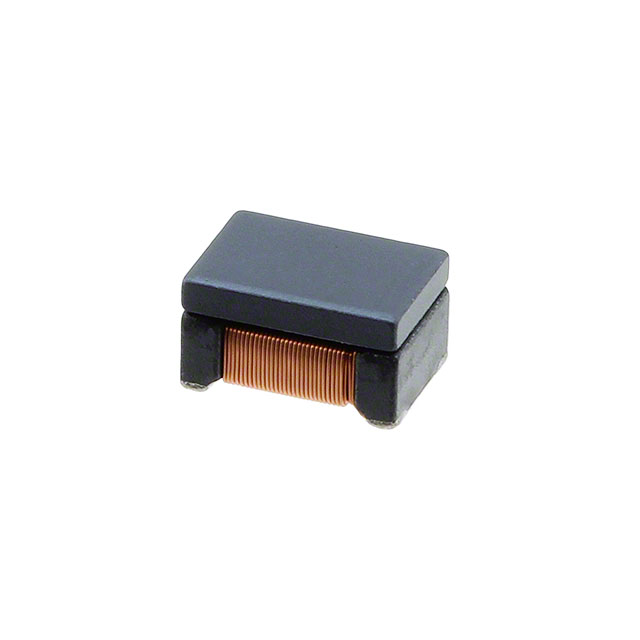

DLW43SH510XK2L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 51UH 230MA 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLW43SH510XK2L
- Description：CMC 51UH 230MA 2LN SMD AEC-Q200
- Series：DLW43
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：230mA
- DC Resistance (DCR) (Max)：1Ohm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height (Max)：0.110" (2.80mm)
- Package / Case：1812 (4532 Metric)
- Inductance @ Frequency：51 µH @ 1 MHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for DLW43SH510XK2L
Common Mode Chokes Overview
The Murata DLW43SH510XK2L is a single-channel common mode choke in the EMIFIL DLW43S series. It features a wirewound construction within an unshielded 1812 (4532 metric) surface mount package measuring 4.5 mm x 3.2 mm x 2.6 mm. The component provides an inductance of 51 µH with a tolerance of -30% to +50%. It supports a maximum DC current of 230 mA and has a maximum DC resistance of 1 Ω. Rated for 50 V, it operates between -40 °C and +125 °C and meets AEC-Q200 automotive standards.
Common Mode Chokes Feature Summary
- AEC-Q200 qualified for automotive reliability requirements
- Wirewound technology for high inductance density
- Unshielded design suitable for general EMI suppression
Common Mode Chokes Applications
- Automotive electronic circuit protection
- Signal line noise filtering
- Power supply EMI suppression
Common Mode Chokes Procurement Notes
Verify the complete part number including suffixes to ensure correct packaging and specifications. Confirm RoHS and REACH compliance status through official manufacturer documentation before integration. Cross-reference datasheet electrical parameters against specific application requirements to validate performance under operating conditions.
Common Mode Chokes Selection Notes
Select this component for applications requiring 51 µH inductance in a compact 1812 footprint. Ensure the 230 mA current rating exceeds the maximum expected signal or power line current. Verify that the unshielded nature does not interfere with nearby sensitive components due to potential magnetic field emission.
Common Mode Chokes Part Context
This component belongs to the Murata EMIFIL DLW43S series of common mode chokes. The series utilizes wirewound technology to achieve high inductance values in small surface mount packages. These components are designed for electromagnetic interference suppression in various electronic circuits.
Common Mode Chokes Replacement Considerations
Consult official Murata documentation for verified substitute part numbers within the DLW43S series or equivalent product lines. Do not assume interchangeability based on package size alone; verify inductance, current rating, and impedance characteristics.
