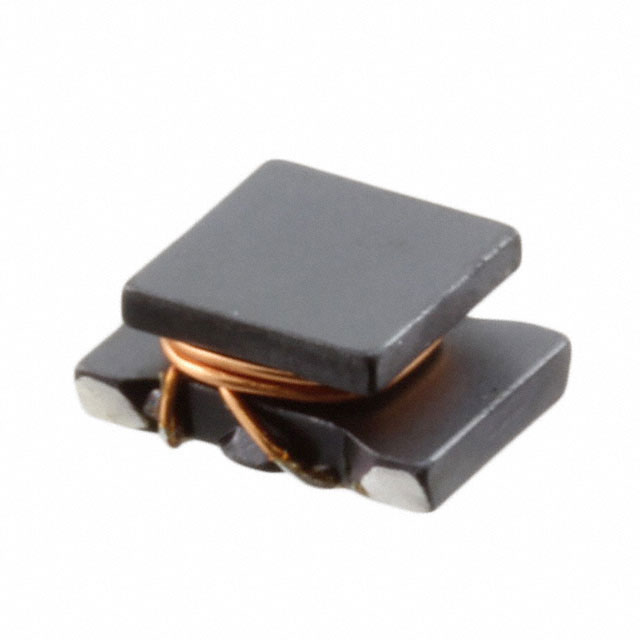

DLW5ATN851SQ2L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 1.5A 2LN 850 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DLW5ATN851SQ2L
- Description：CMC 1.5A 2LN 850 OHM SMD
- Series：DLW5A
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power, Signal Line
- Number of Lines：2
- Current Rating (Max)：1.5A
- DC Resistance (DCR) (Max)：73mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.197" L x 0.142" W (5.00mm x 3.60mm)
- Height (Max)：0.093" (2.35mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：850 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for DLW5ATN851SQ2L
Common Mode Chokes Overview
The DLW5ATN851SQ2L is a two-line common mode choke filter manufactured by Murata Electronics. It operates within a temperature range of -40 °C to +85 °C and features a low profile surface mount package measuring 5 mm in length, 3.6 mm in width, and 2.2 mm in height. The component provides an output impedance of 850 ohms at 100 MHz with a maximum DC current rating of 1.5 A. Its maximum DC resistance is specified at 0.052 ohms, ensuring minimal signal loss in data line applications.
Common Mode Chokes Feature Summary
- Provides effective electromagnetic interference suppression for high-speed data lines through dual-channel filtering architecture.
- Features a compact low-profile surface mount design suitable for space-constrained printed circuit board layouts.
Common Mode Chokes Applications
- High-speed serial interface protection
- Data line filtering in consumer electronics
- Signal integrity enhancement in communication modules
Common Mode Chokes Procurement Notes
Verify the specific suffix SQ2L against official Murata documentation to confirm package dimensions and termination specifications. Ensure compliance with RoHS directives and check for any recent lifecycle status updates before finalizing procurement plans.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring 850 ohms impedance at 100 MHz for common mode noise reduction. Confirm that the 1.5 A current rating and 0.052 ohm DC resistance align with the target application's power and signal requirements.
Common Mode Chokes Part Context
This component belongs to the DLW5A series of wirewound chip common mode chokes. It is part of Murata's EMIFIL product line, designed specifically for suppressing electromagnetic interference in digital signal paths while maintaining signal integrity.
Common Mode Chokes Replacement Considerations
Consult official Murata substitution guides for verified equivalents. Do not assume functional compatibility with other series without verifying impedance curves and physical footprint constraints.
