DLW5BSZ601TQ2L

Common Mode Chokes Overview

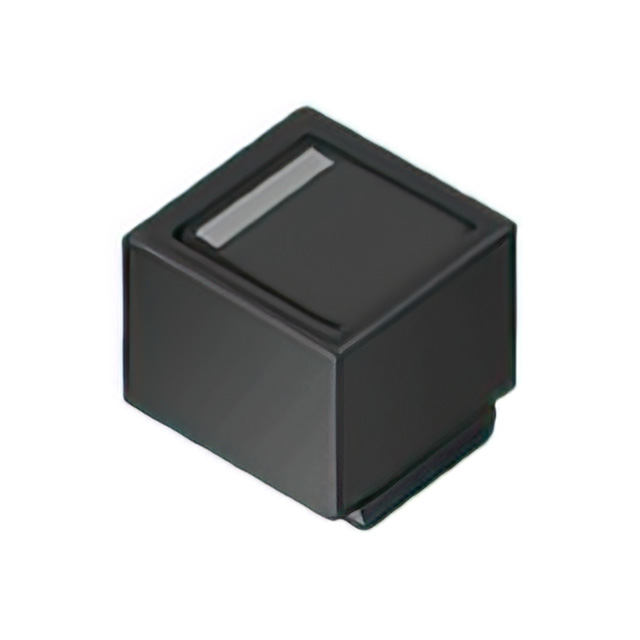

The DLW5BSZ601TQ2L is a wire-wound chip common mode choke coil from the EMIFIL DLW5B_Z series, manufactured by Murata Electronics. Designed for surface mount technology (SMD/SMT) with a 2020 (5050 metric) horizontal package, it provides electromagnetic interference suppression in compact layouts. The component exhibits an impedance of 600 Ohms at 100 MHz and supports a maximum DC current of 700 mA. It features a low maximum DC resistance of 230 mOhms and operates within a temperature range of -40°C to +105°C. The device meets AEC-Q200 qualification standards for automotive reliability.

Common Mode Chokes Feature Summary

• Horizontal four-pad surface mount package optimized for automated PCB assembly and space-constrained designs
• Wire-wound construction delivering high common mode noise attenuation at 100 MHz
• AEC-Q200 qualified for robust performance in automotive electronic environments

Common Mode Chokes Applications

• Automotive infotainment system signal line filtering
• High-speed data interface EMI suppression in vehicle control units
• Power line noise reduction in automotive electronics

Common Mode Chokes Procurement Notes

Verify the specific suffix TQ2L against official Murata documentation to confirm packaging configuration and reel specifications. Ensure the selected variant matches the required AEC-Q200 automotive qualification status. Cross-reference the impedance tolerance and DC current ratings with the target circuit design requirements before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a horizontal footprint is required for dense PCB layouts or automated assembly processes. The DLW5BSZ601TQ2L is suitable for applications demanding AEC-Q200 compliance and significant noise suppression at 100 MHz. Evaluate the 700 mA current rating and 230 mOhms DCR to ensure compatibility with the specific power and signal integrity constraints of the target application.

Common Mode Chokes Part Context

This part belongs to the Murata EMIFIL DLW5B_Z series, which specializes in wire-wound common mode chokes for automotive and industrial applications. The series offers various impedance values and current ratings within standardized packages. The DLW5BSZ601TQ2L specifically addresses the need for high-performance noise filtering in compact automotive electronic modules requiring reliable EMI suppression.

Common Mode Chokes Replacement Considerations

Consult official Murata substitution guides for verified alternatives. Potential substitutes may include other DLW5B_Z series variants with adjusted impedance or current ratings, provided they maintain the same horizontal package and AEC-Q200 qualification.
