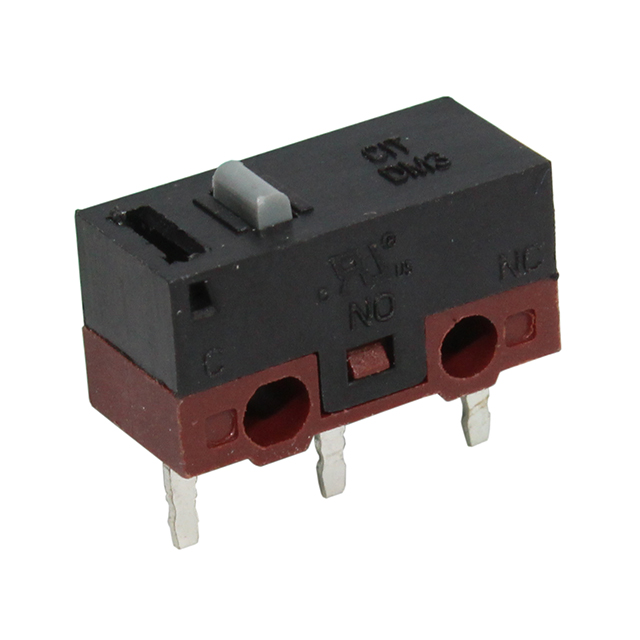

DM3CQF1003L00

DM3CQF1003L00 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for DM3CQF1003L00

• Description：SWITCH LIMIT SPDT 3A 125V
• Series：DM3
• Mfr：CIT Relay and Switch
• Package：Bag
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：3A (AC/DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Through Hole
• Termination Style：PC Pin
• Ingress Protection：-
• Features：-
• Operating Force：100gf
• Release Force：50gf
• Operating Position：0.217" (5.5mm)
• Pretravel：0.028" (0.7mm)
• Differential Travel：0.008" (0.2mm)
• Overtravel：0.004" (0.1mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for DM3CQF1003L00
