DMA264010R

Overview

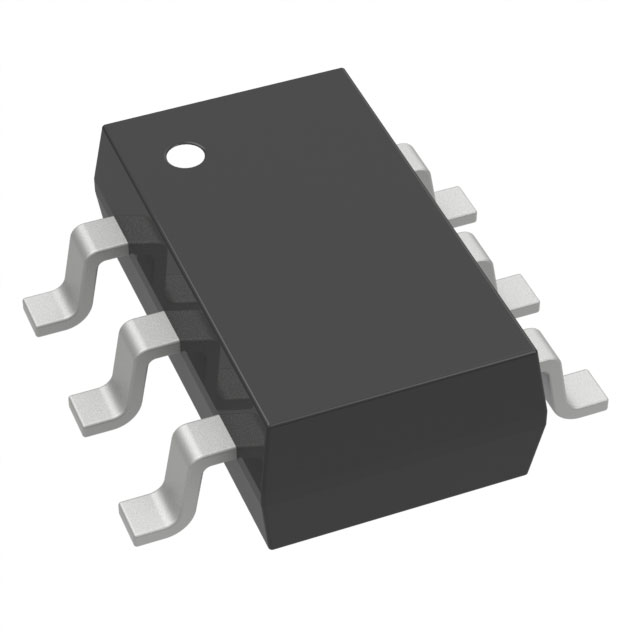

The DMA264010R is a digital transistor manufactured by Panasonic Industry, classified under the semiconductor and discrete component category. It features an NPN configuration with a dual internal structure designed for compact circuit integration. The device incorporates a built-in base resistor to simplify driver interface requirements. Key electrical parameters include a collector-emitter maximum voltage (VCEO) of 50 V and a continuous collector current rating of 100 mA. The typical input resistance is specified at 10 kOhms. The component supports surface mount installation in a Mini5-G3-B package and operates within a maximum temperature range of +150 C.

Feature Summary

• Integrates dual NPN transistors with embedded base resistors for simplified logic interfacing
• Designed for high-temperature operation up to +150 C
• Compact surface-mount packaging suitable for space-constrained applications

Applications

• Logic level shifting circuits
• Switching applications in consumer electronics
• Driver interfaces for microcontrollers

Procurement Notes

Verify availability status through authorized distributors as discontinuation notices may apply. Confirm RoHS compliance details directly from the manufacturer datasheet before procurement. Ensure ordering suffixes match specific packaging requirements such as cut tape or reel formats. Cross-reference part numbers with official Panasonic Industry databases to avoid counterfeit components.

Selection Notes

Select this component when a dual NPN digital transistor with a 10 kOhm base resistor is required. Verify that the 50 V collector-emitter voltage and 100 mA current ratings meet circuit demands. Consider the Mini5-G3-B package dimensions for PCB layout compatibility. Evaluate thermal performance constraints given the +150 C maximum operating temperature specification.

Part Context

This component belongs to the DMC series of digital transistors produced by Panasonic Industry. These devices are engineered to replace multiple discrete components by integrating transistors and biasing resistors into a single package. The series supports various configurations and resistance values to accommodate different logic family requirements.

Replacement Considerations

Consult official Panasonic Industry documentation for confirmed substitute part numbers. Verify pinout compatibility and electrical parameter equivalence before substitution.
