DMA566030R

Overview

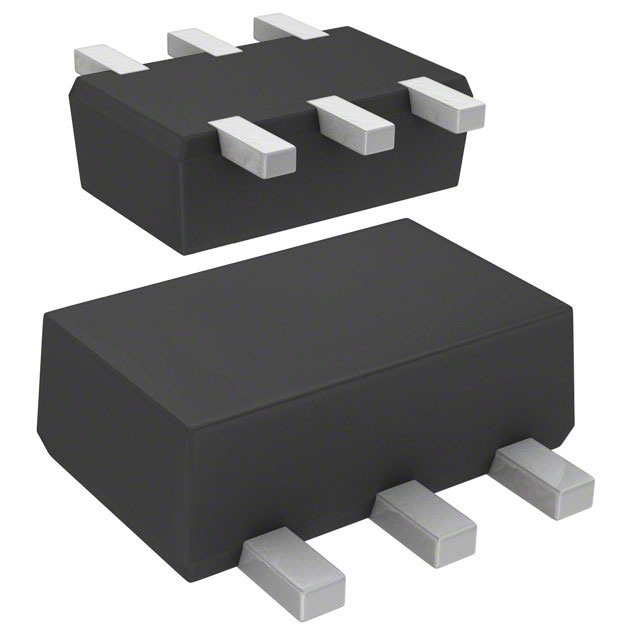

The Panasonic DMA566030R is a dual pre-biased PNP digital transistor housed in the SMini6-F3-B surface-mount package. It integrates two PNP transistors with typical base resistors of 47 kΩ. Key electrical specifications include a maximum collector-emitter voltage (VCEO) of 50 V, a continuous collector current (IC) of 100 mA, and a DC current gain (hFE) minimum of 160 at IC=5mA and VCE=10V. The device features a maximum collector-base cutoff current of 500 nA and a maximum power dissipation of 150 mW.

Feature Summary

• Dual integrated PNP transistors with built-in biasing resistors for simplified circuit design
• Compact SMini6 surface-mount packaging suitable for high-density applications
• High DC current gain capability ensuring efficient switching performance

Applications

• General-purpose signal switching circuits
• Driver stages for low-current loads
• Logic interface and level shifting applications

Procurement Notes

Verify component authenticity through authorized Panasonic Industry distributors or certified partners. Request official datasheets and material compliance certificates to confirm RoHS status and manufacturing origin. Ensure storage conditions meet specified humidity and temperature limits to prevent degradation prior to assembly.

Selection Notes

Select this component when a compact dual PNP solution with integrated base resistance is required. Verify that the 47 kΩ internal resistor value aligns with the target drive current requirements. Confirm that the 50 V voltage rating and 100 mA current capacity exceed the application's peak operational demands.

Part Context

This part belongs to Panasonic's series of pre-biased digital transistors designed to replace discrete resistor-transistor combinations. The SMini6 package offers a small footprint compared to traditional leaded packages, facilitating automated placement in modern PCB assembly processes while maintaining reliable thermal and electrical characteristics.

Replacement Considerations

The DMA566030R may be functionally replaced by the DMA566060R if the specific base resistor tolerance and exact hFE characteristics are compatible with the circuit design.
