DMA961010R

Overview

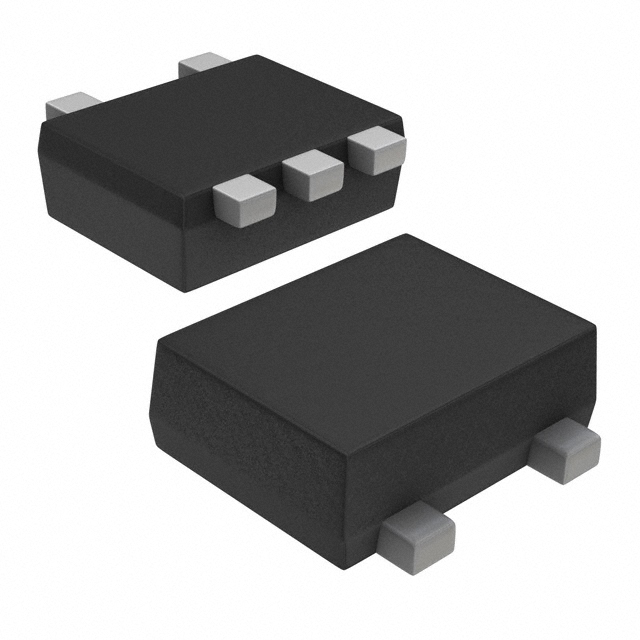

The Panasonic DMA961010R is a dual PNP digital transistor housed in an SSMini5-F4-B surface-mount package. It integrates two pre-biased transistors with built-in resistors within a compact 1.6x1.6mm footprint. Key electrical specifications include a maximum collector-emitter voltage of -50 V and a continuous collector current of -100 mA. The device supports a maximum operating temperature of +150 °C, ensuring reliability in high-thermal environments.

Feature Summary

• Integrates two PNP transistors with built-in biasing resistors for simplified circuit design
• Utilizes a compact SSMini5-F4-B surface-mount package to minimize board space
• Supports high thermal stability with a maximum operating temperature of +150 °C

Applications

• Signal switching in consumer electronics
• Logic level translation circuits
• Driver stages for low-power loads

Procurement Notes

Verify the exact package designation, as sources cite both SSMini5-F3-B and SSMini5-F4-B variants. Confirm RoHS compliance status directly with the manufacturer or authorized distributors. Ensure the selected variant matches the specific pinout and thermal requirements of the target application before finalizing procurement.

Selection Notes

Select this component when a dual PNP configuration with integrated biasing is required in a minimal footprint. The high junction temperature rating makes it suitable for applications with elevated thermal constraints. Compare against single-transistor alternatives if only one channel is needed to optimize cost and space efficiency.

Part Context

This part belongs to Panasonic's series of complex digital transistors designed for replacing multiple discrete components. The DMA961010R specifically addresses the need for compact, pre-biased solutions in modern electronic designs where board real estate is limited and circuit simplicity is prioritized.

Replacement Considerations

Potential substitutes include the DMC964010R (NPN dual) or DMA202010R (PNP dual), though polarity and package differences must be verified. Cross-reference datasheets for pin compatibility and electrical ratings before substitution.
