DMA961030R

Overview

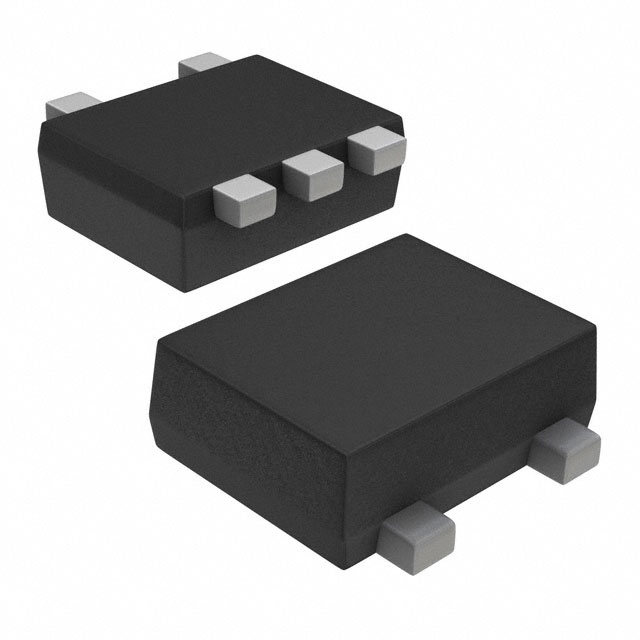

The DMA961030R is a dual pre-biased PNP transistor from Panasonic Electronic Components, housed in an SSMINI5 (Mini5-G3-B) surface-mount package. It integrates two PNP transistors with typical input resistors of 47 kOhms. Key electrical parameters include a collector-emitter maximum voltage (VCEO) of -50 V and a continuous collector current of -100 mA. The device supports a maximum operating temperature of +150 C and is available in Reel, Cut Tape, and MouseReel packaging formats.

Feature Summary

• Dual PNP configuration within a single compact package
• Integrated pre-biasing for simplified circuit design
• High thermal stability supporting elevated operating temperatures

Applications

• General-purpose switching applications
• Driver circuits for low-current loads
• Signal processing interfaces requiring integrated biasing

Procurement Notes

Verify component authenticity through official Panasonic channels or authorized distributors. Confirm RoHS compliance status prior to integration. Check for end-of-life notifications or product change notices that may affect long-term supply. Ensure storage conditions align with manufacturer specifications to maintain device integrity before assembly.

Selection Notes

Select this component when space-constrained designs require dual PNP switching functions. The integrated biasing reduces external component count compared to discrete solutions. Verify that the -50 V voltage rating and -100 mA current capacity meet specific application requirements. Consider the Mini5-G3-B package dimensions for PCB layout compatibility.

Part Context

This part belongs to Panasonic's digital transistor family, designed to replace multiple discrete components. It simplifies board space usage by combining transistors and biasing resistors. The series targets high-volume consumer and industrial electronics where reliability and compact form factors are critical design constraints.

Replacement Considerations

The DMA961030R shares the same SSMINI5 package and dual PNP configuration with the DMA261030R. Verify pinout compatibility and specific electrical tolerances before substitution. Consult official datasheets to confirm functional equivalence in the target application.
