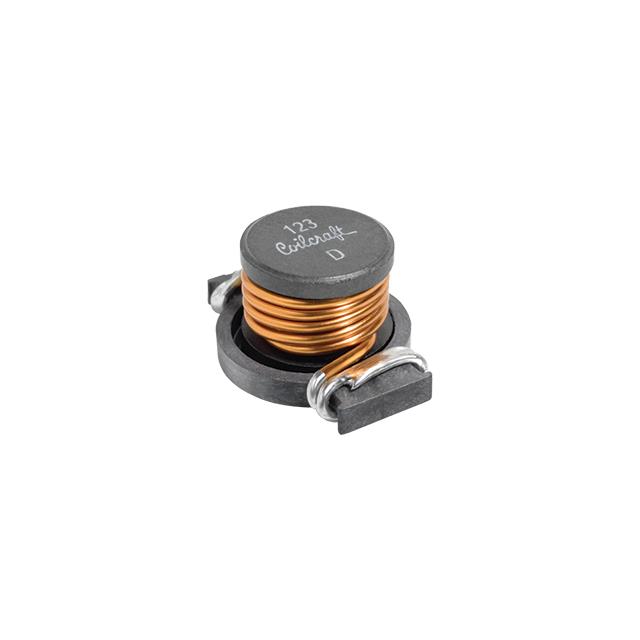

DO5040H-153MLD is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Coilcraft. Its product description is FIXED IND 15UH 6.5A 20MOHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for DO5040H-153MLD
- Description：FIXED IND 15UH 6.5A 20MOHM SM
- Series：DO5040H
- Mfr：Coilcraft
- Package：Strip
- Type：Wirewound
- Material - Core：Ferrite
- Inductance：15 µH
- Tolerance：±20%
- Current Rating (Amps)：6.5 A
- Current - Saturation (Isat)：13.8A
- Shielding：Unshielded
- DC Resistance (DCR)：20mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：18MHz
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 85°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.730" L x 0.600" W (18.54mm x 15.24mm)
- Height - Seated (Max)：0.472" (12.00mm)
- Features：-
Fixed Inductors datasheet and documents for DO5040H-153MLD
