DP-241-4-36

Overview

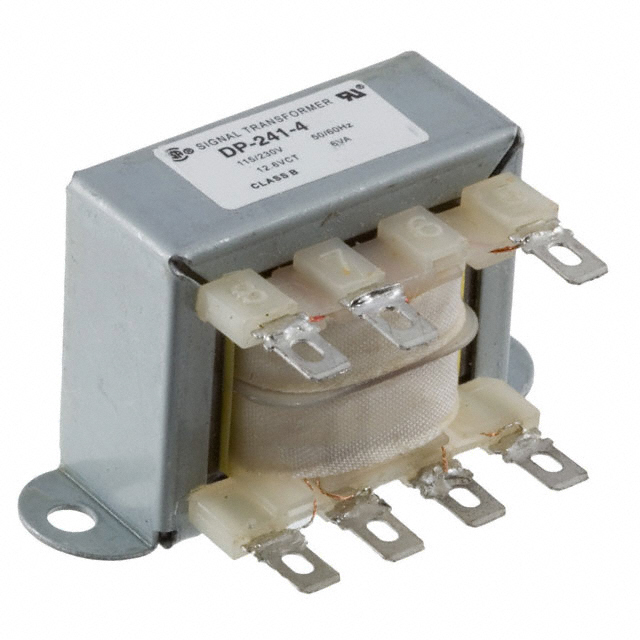

The DP-241-4-36 is a laminated core power transformer from Signal Transformer, designed for chassis mounting. It features dual primary windings supporting 115V and 230V inputs at 50 Hz or 60 Hz operating frequencies. The secondary output provides 36V at a maximum current of 170mA, resulting in a 6VA rating. Key electrical specifications include a dielectric strength of 2500Vrms and an operating temperature range from -40°C to +105°C.

Feature Summary

• Utilizes a split bobbin design to ensure superior isolation and low capacitive coupling between windings.
• Supports dual primary winding configurations for flexible 115V or 230V input selection.
• Constructed with a laminated core type optimized for standard industrial control applications.

Applications

• Industrial control systems requiring isolated power supplies
• Chassis-mounted equipment needing 36VAC secondary power
• General purpose transformers for 50/60Hz line frequency operation

Procurement Notes

Verify the specific voltage configuration required for your application, as the dual primary allows for either 115V or 230V input. Confirm that the 170mA output current meets the load requirements. Ensure the chassis mounting style and physical dimensions are compatible with the intended enclosure design before finalizing the order.

Selection Notes

Select this component when a 6VA capacity is sufficient for the load. The dual primary winding offers flexibility for different regional voltages. Consider the 2500Vrms isolation rating if safety separation is critical. The wide operating temperature range supports use in environments with significant thermal variations.

Part Context

This model belongs to the Two-4-One™ series by Signal Transformer, known for standardized power transformer solutions. The series typically includes various wattage ratings and voltage combinations, allowing engineers to select appropriate units based on specific power and isolation needs within industrial and commercial electronic designs.

Replacement Considerations

Consult official manufacturer documentation for direct cross-references. Verify that any substitute part matches the 36V secondary output, 170mA current limit, and 2500Vrms isolation rating. Physical mounting compatibility and lead wire termination styles must also be confirmed to ensure proper integration.
