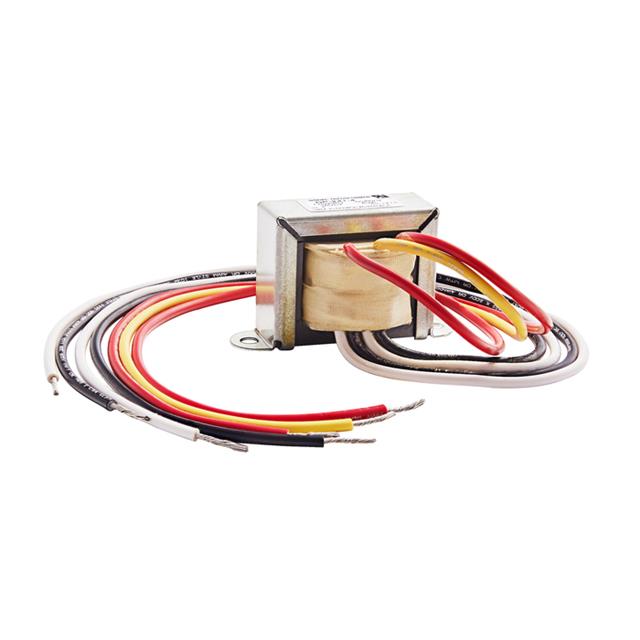

DP-241-4-36L
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：PWR XFMR LAMINATED 6VA CHAS MT
- Series：Two-4-One™
- Mfr：Signal Transformer
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：36V
- Current - Output (Max)：170mA
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：6VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：60.30mm L x 33.30mm W
- Height - Seated (Max)：36.20mm
- Voltage - Isolation：2500Vrms
- Weight：0.44 lb (199.58 g)
Download product information
Overview
The Signal Transformer DP-241-4-36L is a laminated core power transformer designed for chassis mounting. It features dual primary windings rated for 115 VAC and 230 VAC operation at 50/60 Hz. The single secondary winding provides a 36 VCT output with a maximum current of 170 mA, resulting in a total power rating of 6 VA. The unit measures 60.30 mm in length, 33.30 mm in width, and has a maximum height of 36.20 mm. It utilizes wire lead termination and offers 2500 Vrms isolation voltage.
Feature Summary
- Dual primary winding configuration supports both 115 VAC and 230 VAC input voltages.
- Single secondary winding delivers center-tapped output for rectification applications.
- Chassis mount design with wire leads for secure installation.
Applications
- Industrial control panel power supplies
- Equipment requiring isolated AC power distribution
- Rectifier circuits needing center-tapped secondary voltage
Procurement Notes
Verify the specific part number suffix against official Signal Transformer documentation to confirm exact electrical ratings and physical dimensions. Ensure that the chassis mounting requirements align with the specified terminal type and dimensional constraints before procurement. Cross-reference datasheet revisions to confirm compliance with current environmental standards such as RoHS.
Selection Notes
Select this component when a 6 VA laminated core transformer is required for chassis installation. The dual primary capability allows flexibility for different regional line voltages. Verify that the 170 mA secondary current capacity meets the load requirements of the target circuit. Confirm that the 2500 Vrms dielectric strength is sufficient for the application's isolation needs.
Part Context
This model belongs to the Two-4-One series of power transformers manufactured by Signal Transformer. The series is characterized by standard laminated core construction and versatile primary voltage options. These components are typically used in general-purpose industrial electronics where reliable isolation and compact chassis mounting are prioritized over surface-mount integration.
Replacement Considerations
Consult official manufacturer substitution guides for direct equivalents. Generic replacements must match the 6 VA power rating, 36 VCT secondary specification, and chassis mounting form factor. Verify that any substitute maintains the 2500 Vrms isolation rating and compatible physical dimensions for existing enclosures.
